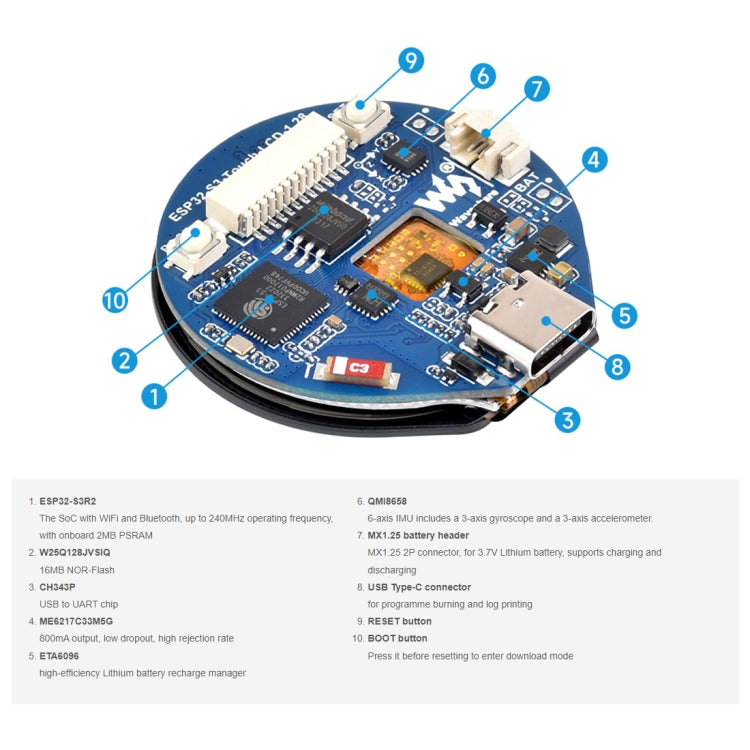

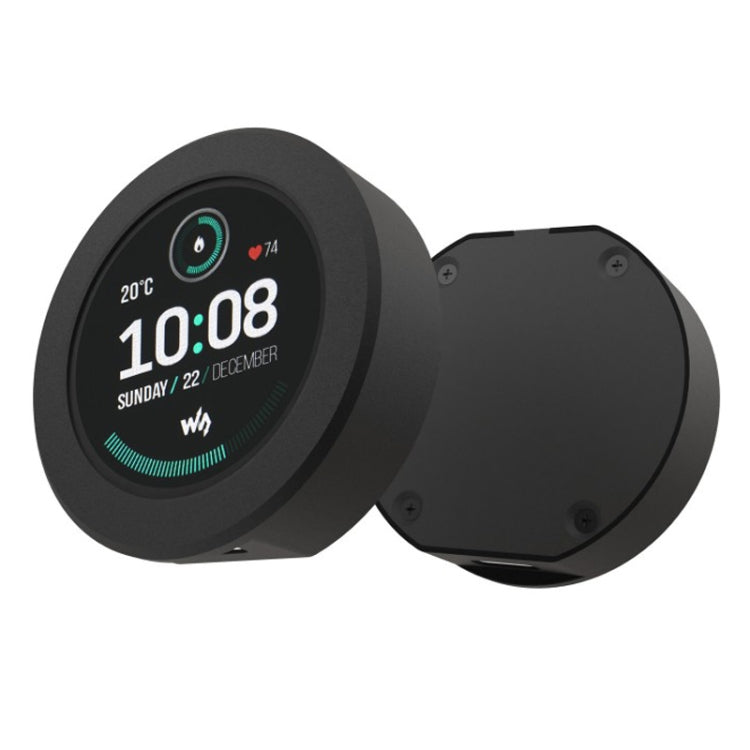

1. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240 MHz
2. Support 2.4 GHz WiFi (802.11b/g/n) and Bluetooth5 (LE), onboard antenna
3. Built-in 512KB SRAM and 384KB ROM, stacked 2MB PSRAM and external 16MB Flash
4. Adopt Type-C interface, no need to worry about whether to insert it in the right or wrong direction

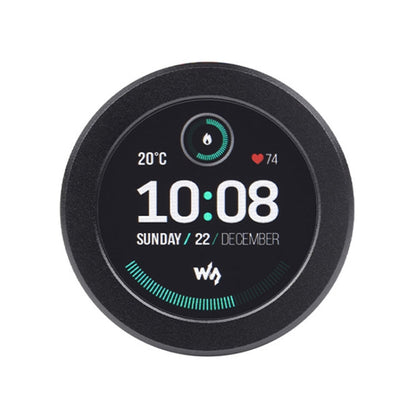

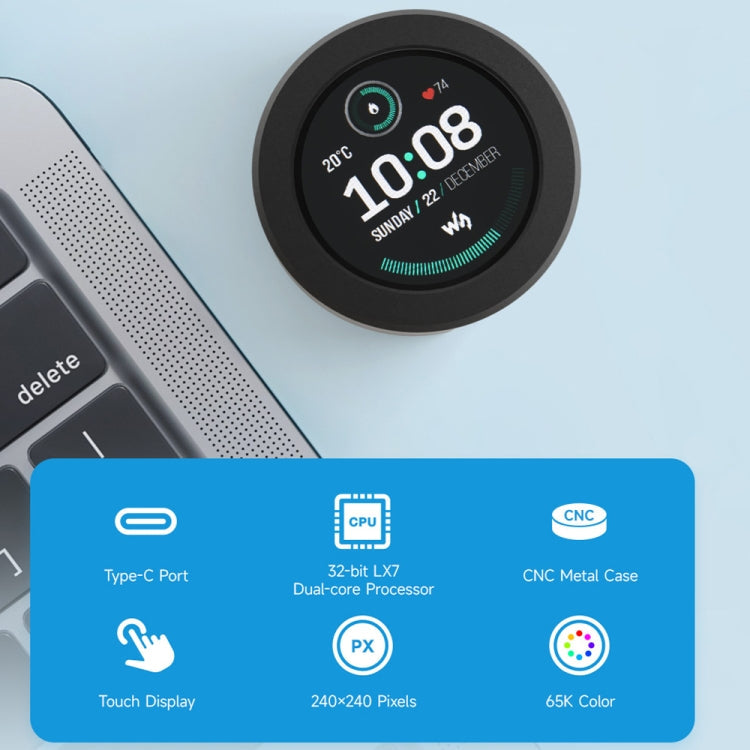

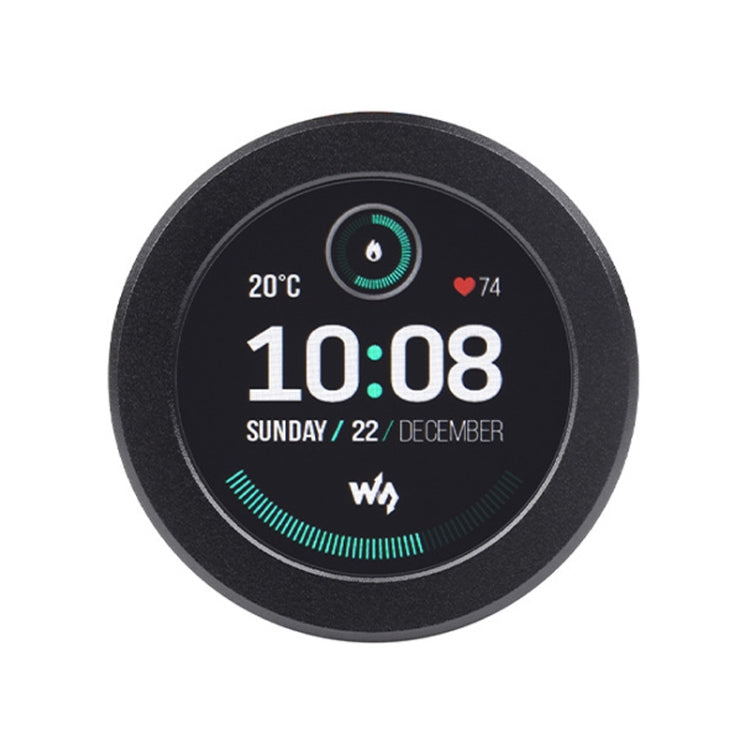

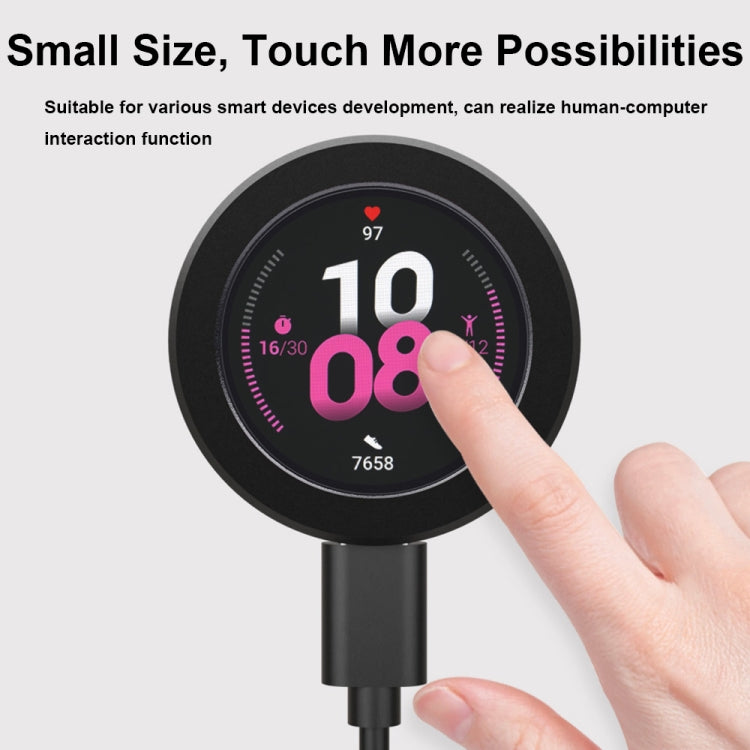

5. Onboard 1.28-inch capacitive touch LCD screen, 240 x 240 resolution, 65K color

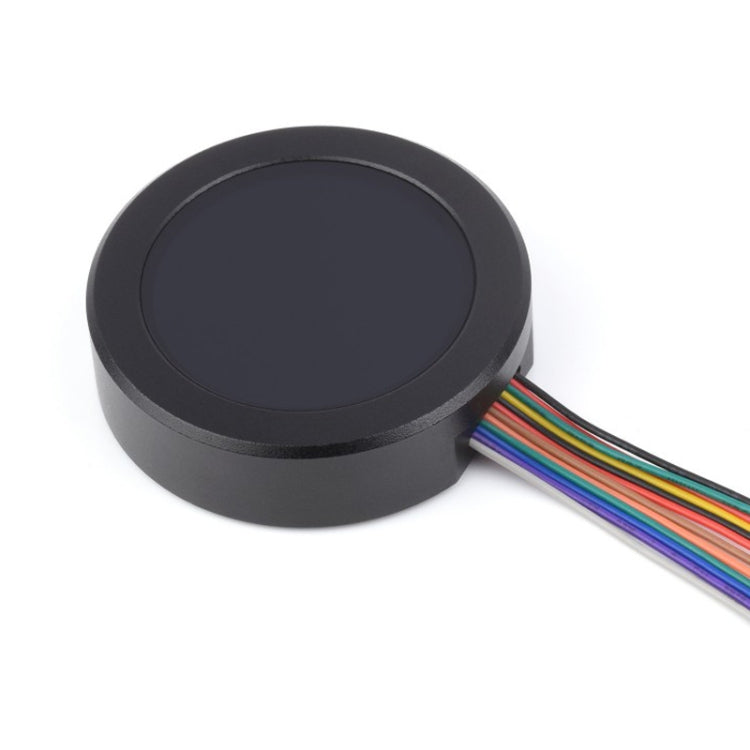

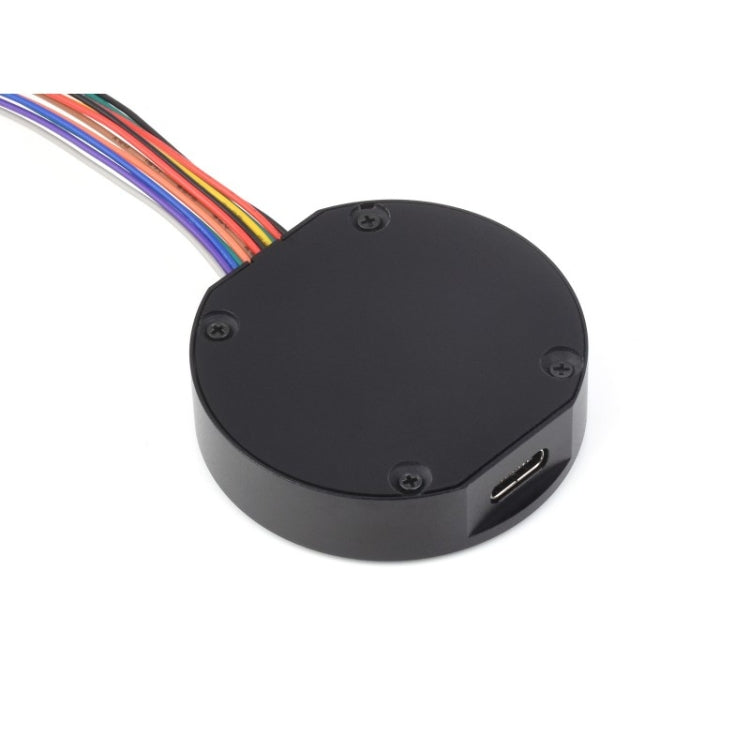

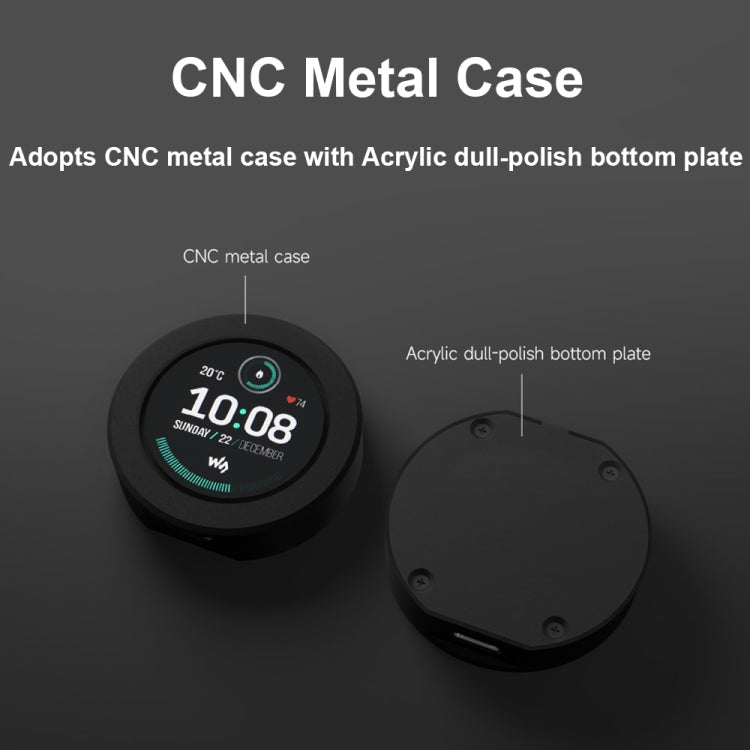

6. The upper shell is made of CNC metal material, and the back is equipped with an acrylic matte base
7. Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), which can detect motion posture
8. Onboard 3.7V MX1.25 lithium battery charging and discharging interface

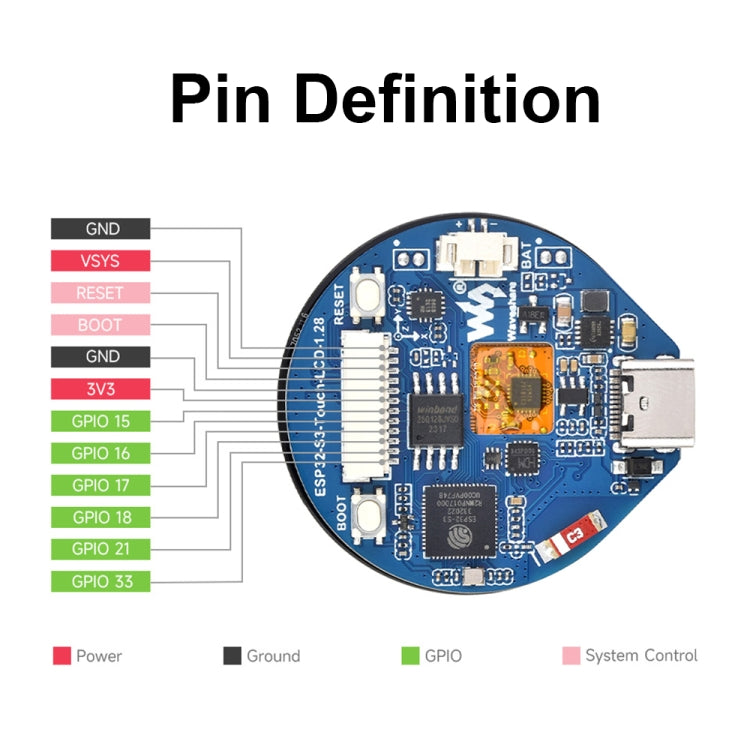

9. Lead out 6 GPIO SH1.0 connector
10. Supports flexible clock, module power individual setting and other precise control to achieve multi-scenario low power consumption mode
11. Integrated USB serial port full-speed controller, GPIO can flexibly configure peripheral functions

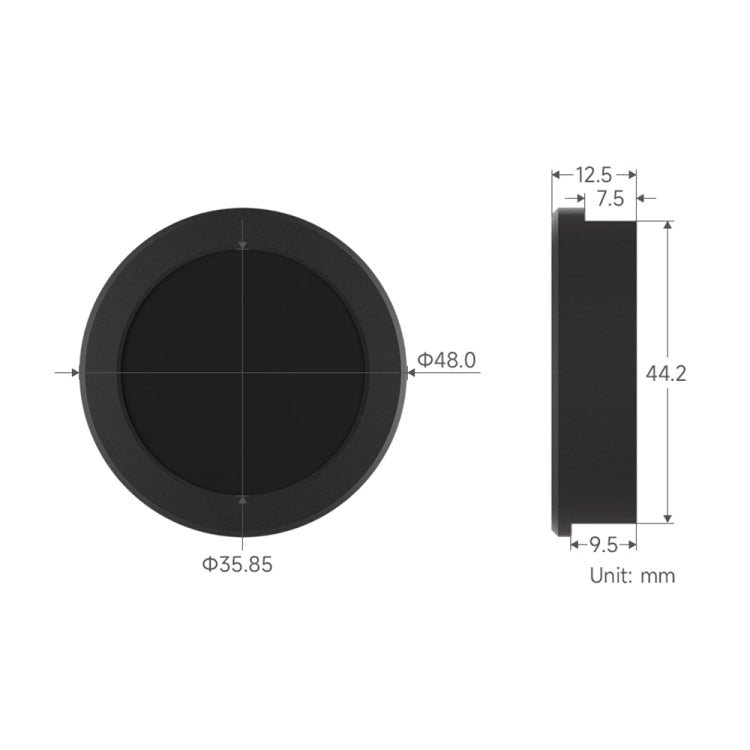

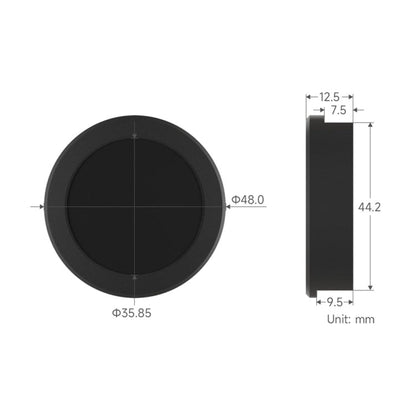

12. Product size: 48 x 48 x 12.5mm
Specification:
|
Package Weight
|
| One Package Weight |
0.08kgs / 0.19lb
|
| One Package Size |
14cm * 12cm * 4cm / 5.51inch * 4.72inch * 1.57inch
|
| Carton Weight |
6.90kgs / 15.21lb
|
| Carton Size |
30cm * 38cm * 50cm / 11.81inch * 14.96inch * 19.69inch
|
| Loading Container |
20GP: 467 cartons * 72 pcs = 33624 pcs
40HQ: 1086 cartons * 72 pcs = 78192 pcs
|
|
