Waveshare 1.54 Inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(Blue)

Waveshare 1.54 Inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(Blue)

£22.77 GBP
£22.77 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

1. Onboard voltage converter, compatible with 3.3V/5V MCU
2. Using 4-wire SPI and I2C interface, better compatibility and fast data rate

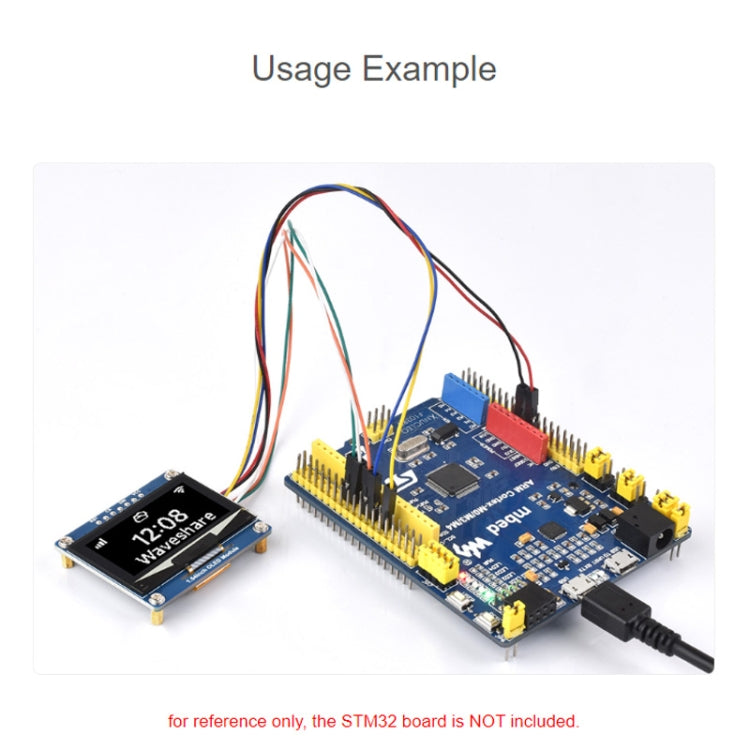

3. Comes with online development resources (Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano examples)
4. Working voltage: 3.3V/5V
5. Display panel: OLED
6. Resolution: 128×64 pixels
7. Pixel size: 0.25 × 0.25 mm
8. Communication interface: 4-wire SPI/I2C
9. Driver: SSD1309
10. Display size: 35.05 × 17.52mm
11. Module size: 43.00 × 37.50mm
12. Weight: 3 grams

Packing list:
-1.54-inch OLED module x 1
-GH1.25 7PIN cable x 1


Specification:
Package Weight
One Package Weight 0.02kgs / 0.05lb
One Package Size 10cm * 6cm * 3cm / 3.94inch * 2.36inch * 1.18inch
Qty per Carton 180
Carton Weight 4.70kgs / 10.36lb
Carton Size 32cm * 38cm * 32cm / 12.6inch * 14.96inch * 12.6inch
Loading Container 20GP: 685 cartons * 180 pcs = 123300 pcs
40HQ: 1590 cartons * 180 pcs = 286200 pcs
