1. Widely used in automotive electronics, communications, power supply, computers and other industries and fields
2. Logic analyzer is used to analyze the logical relationship of the digital system, it can capture and store multiple digital signals and display their sequential relationship directly on the screen
3. With protocol analysis function, you can analyze the logic signal of the physical layer of the protocol into the data of the high-level protocol and display it on the screen
4. Mini size, easy to carry
Parameters:
1. Number of input channels: 4
2. Sampling rate: 100MHz
3. Capture pulse width (Min): 10ns
4. Input impedance: 1 milliohm
5. Number of output channels: 4
6. Mode: SPI, I2C, PWM
7. 3V output channel: 1
8. Storage: 8MB USB memory storage
9. Screen size: 2.8-inch TFT LCD
10. Screen resolution: 320 x 240
11. Battery capacity: 500mAh
12. Threshold voltage: 1.2-3V
13. Main unit size: 100 x 56 x 8.6mm
14. Weight: 83g
Packing list:

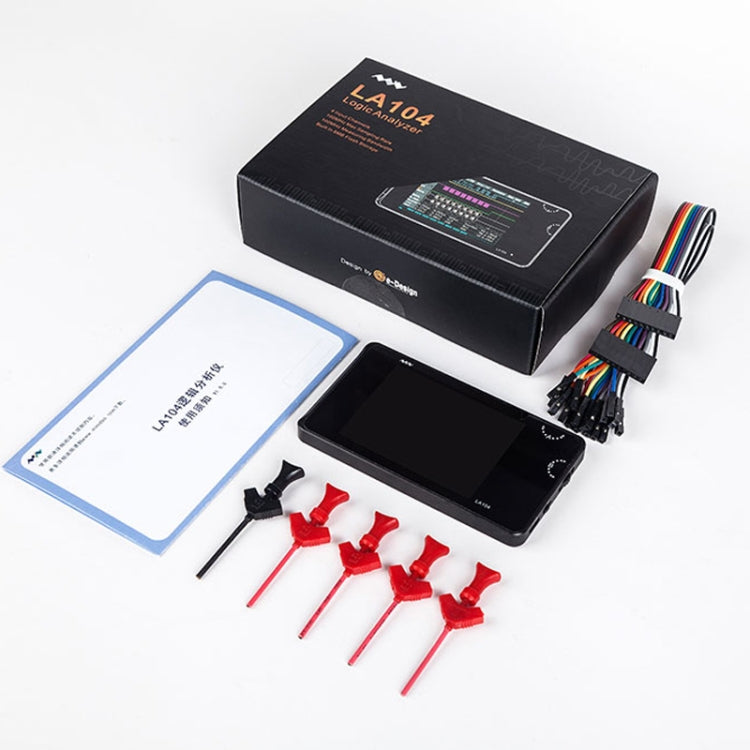

- Logic analyzer host x 1
- DuPont cable x 20
- Test hook x 5
- Instructions for use x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.21kgs / 0.47lb
|
| One Package Size |
15cm * 11cm * 4cm / 5.91inch * 4.33inch * 1.57inch
|
| Carton Weight |
15.50kgs / 34.17lb
|
| Carton Size |
47cm * 38cm * 35cm / 18.5inch * 14.96inch * 13.78inch
|
| Loading Container |
20GP: 426 cartons * 80 pcs = 34080 pcs
40HQ: 990 cartons * 80 pcs = 79200 pcs
|
|
