Feature1. Multiple Functions Digital Tester: it can measure DC/AC voltage, resistance, capacitance, frequency, continuity and diode, NCV non-contact voltage measurement, phase sequence detection.
2. Smart(Auto) Measurement: DC/AC voltage, resistance, continuity can be measured, and the meter can automatically identify the measurement signal.
3. User-friendly Data Checking: signal intensity indicator bargraph, it also has data hold function for freezing the measured data for easily viewing.
4. LED Illumination: built-in LED light for illuminating in the dark working spaces.
5. Compact Portable Size: pen type digital multimeter is lightweight and small size, very convenient to carry.
Specifications1. DC Voltage: 4V/40V/400V/600V
2. AC Voltage: 4V/40V/400V/600V
3. Resistance: 400.0 Ohm/4.000KR/40.00KR/400.0KR/4.000MR/40.00MR
4. Capacitance: 4.000nF/40.00nF/400.0nF/4.000mF/40.00mF
5. Frequency: 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz
6. Material: ABS
7. Display: 4000 counts
8. Power supply method: 3xAAA batteries (not included)

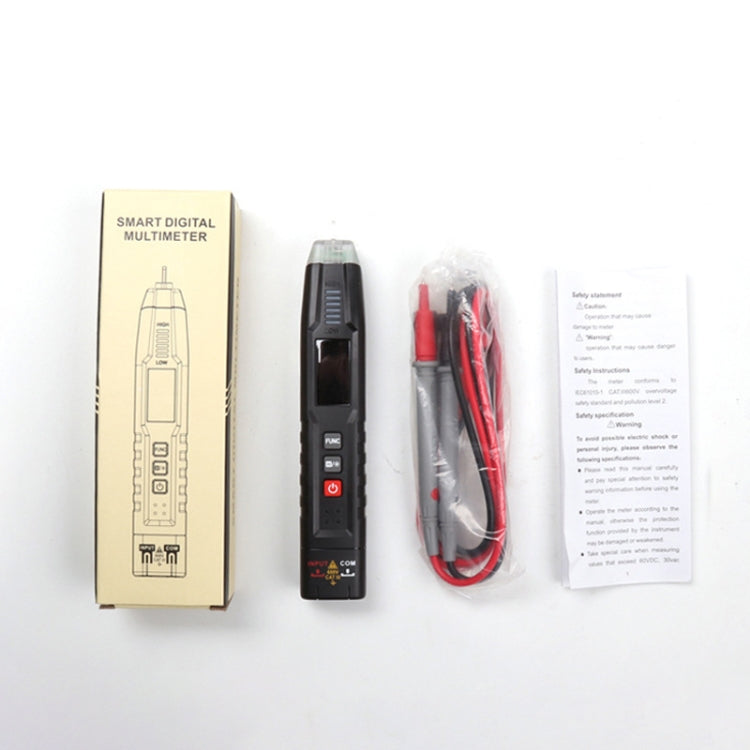

Package List1. Instrument x 1
2. Test pen x 1
3. Color box x 1
4. Instruction manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.17kgs / 0.38lb
|
| One Package Size |
18.2cm * 6.5cm * 4cm / 7.17inch * 2.56inch * 1.57inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
42cm * 39cm * 25cm / 16.54inch * 15.35inch * 9.84inch
|
| Loading Container |
20GP: 651 cartons * 80 pcs = 52080 pcs
40HQ: 1511 cartons * 80 pcs = 120880 pcs
|
|
