1. Power supply: USB direct power supply
2. Power supply voltage: 5-6V
3. Sampling rate: 2.5MS/s
4. Bandwidth: 200KHz
5. Voltage range: X1 40V (Vpp:80V); X10 400V (Vpp:800V)
6. Coupling method: AC/DC
7. PWM output: 3.3V frequency 0-80kHz

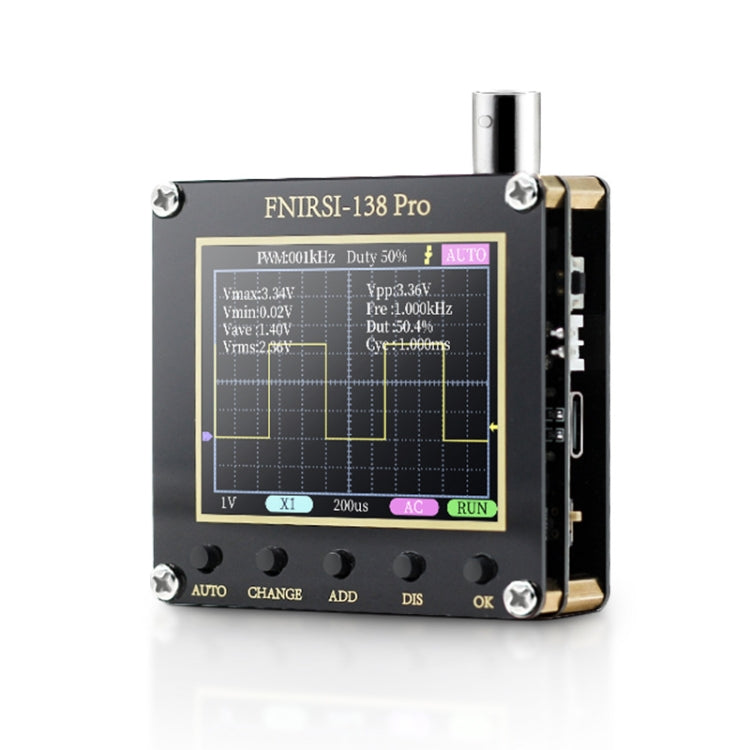

8. Display: 2.4 inches 320x240
9. Automatic trigger: test cycle simulation signal
10. Single trigger: test sudden non-periodic signals
11. Normal triggering: testing digital logic signals

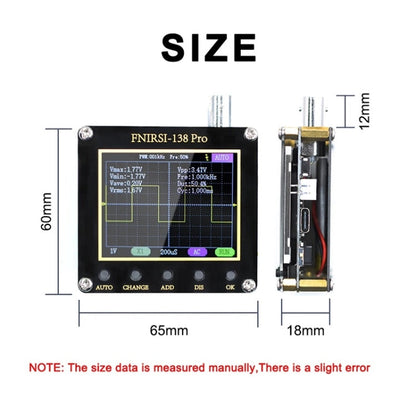

12. Size: 65x60x18mm
13. Weight: 53g (excluding battery)

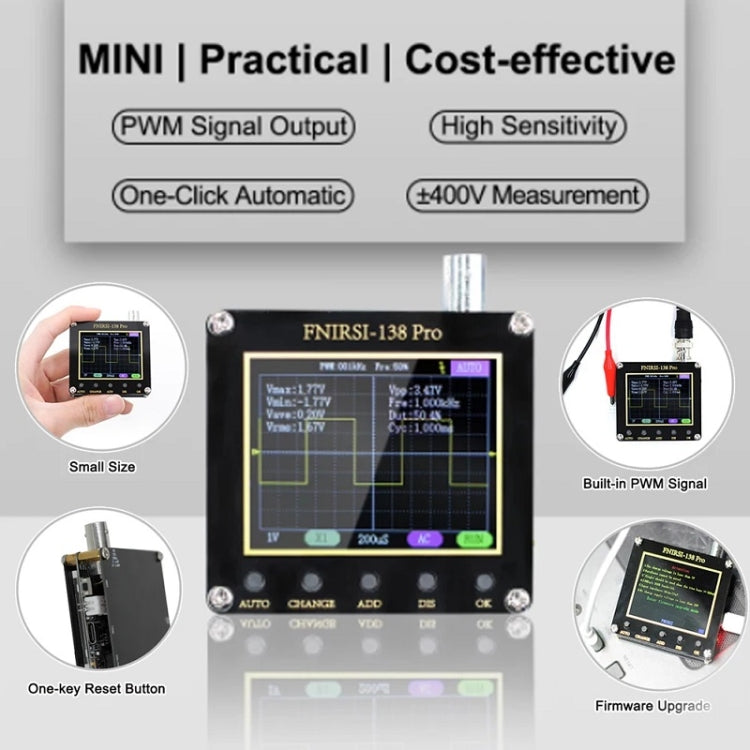

14. Small buttons, comfortable to press and ergonomically designed
15. Universal BNC interface, Type-C supports data transmission and charging
16. Note: The high configuration comes standard with an extra 10x P6100 probe
Specification:
|
Package Weight
|
| One Package Weight |
0.09kgs / 0.20lb
|
| One Package Size |
10cm * 10cm * 4cm / 3.94inch * 3.94inch * 1.57inch
|
| Carton Weight |
9.26kgs / 20.41lb
|
| Carton Size |
42cm * 32cm * 34cm / 16.54inch * 12.6inch * 13.39inch
|
| Loading Container |
20GP: 583 cartons * 96 pcs = 55968 pcs
40HQ: 1354 cartons * 96 pcs = 129984 pcs
|
|
