1. Shell material: plastic
2. Contact material: silver alloy

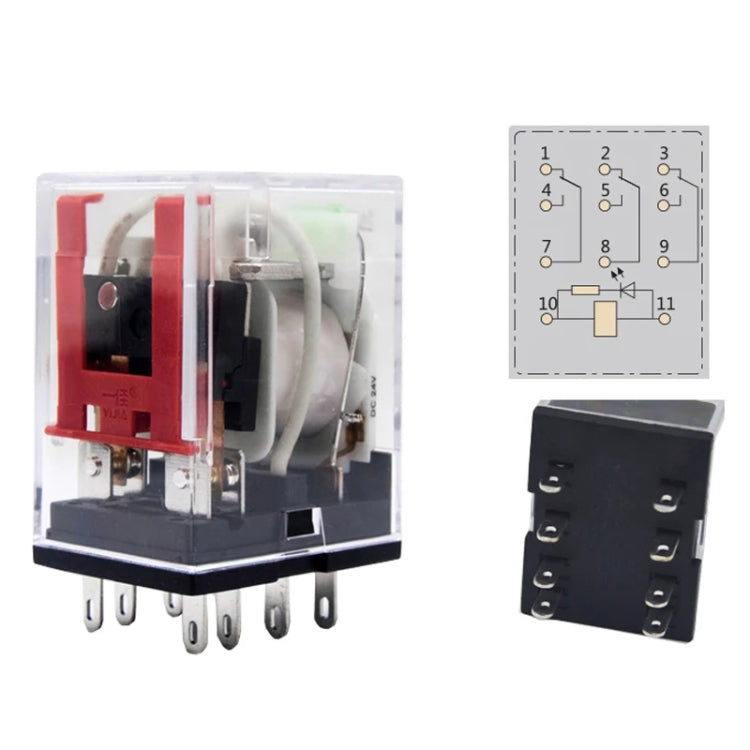

3. Contact form: 2 open and 2 closed
4. Pin number: small 8-pin
5. Rated voltage: 220V
6. Rated current: 5A
7. Coil voltage: 12VACVDC/24VACVDC/110VAC/220VAC

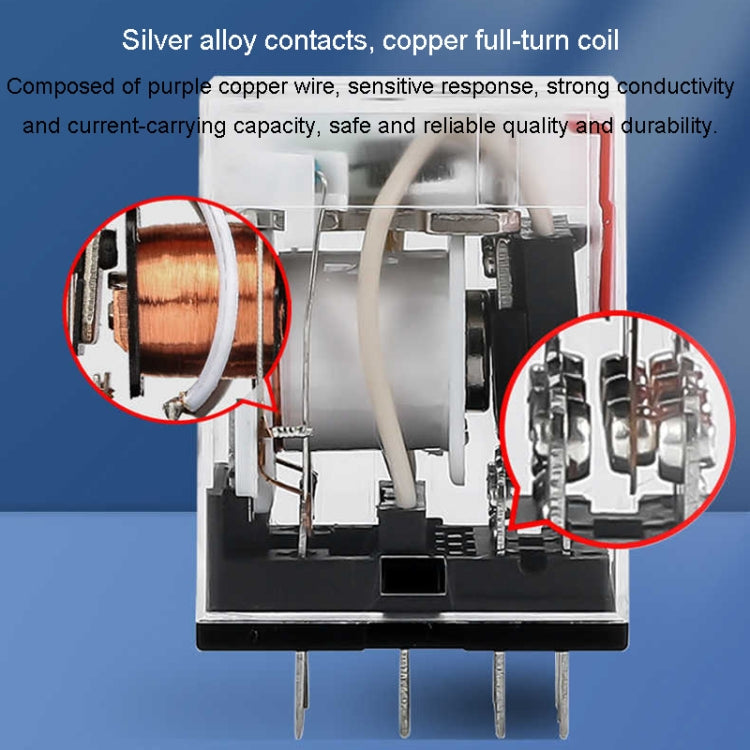

8. Silver alloy contact, full copper full-turn coil, composed of purple copper wire, sensitive response, strong conductivity and current carrying capacity, safe and reliable quality, durable

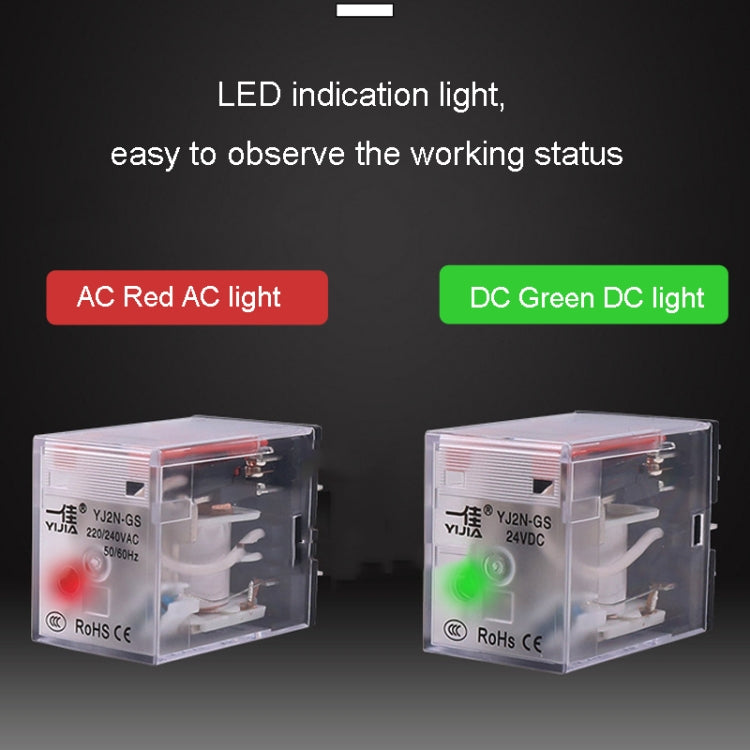

9. Removable shell, high temperature resistance, corrosion resistance, with LED indicator light, easy to observe the working status

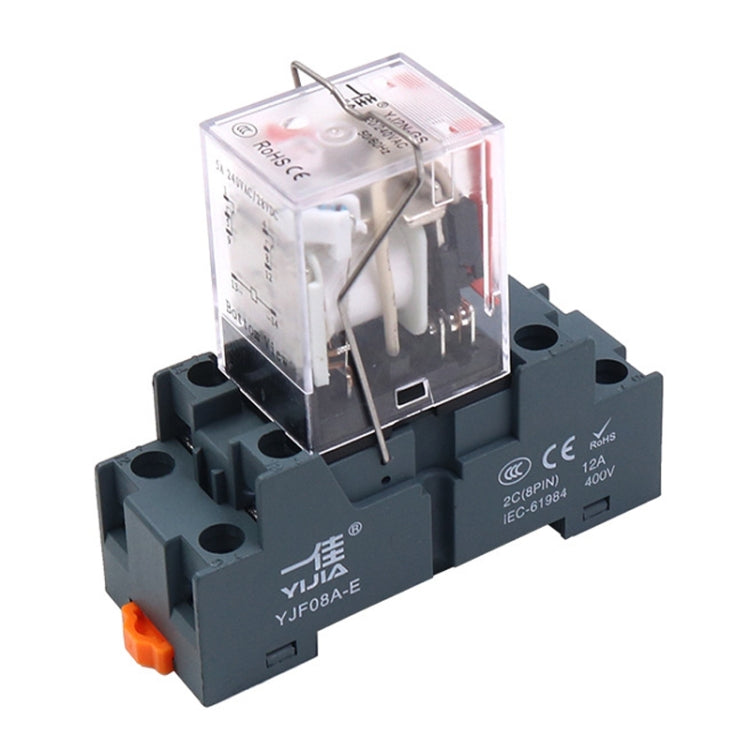

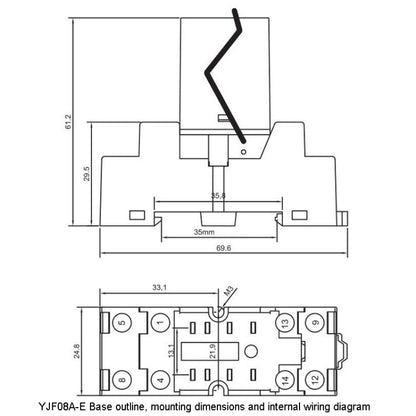

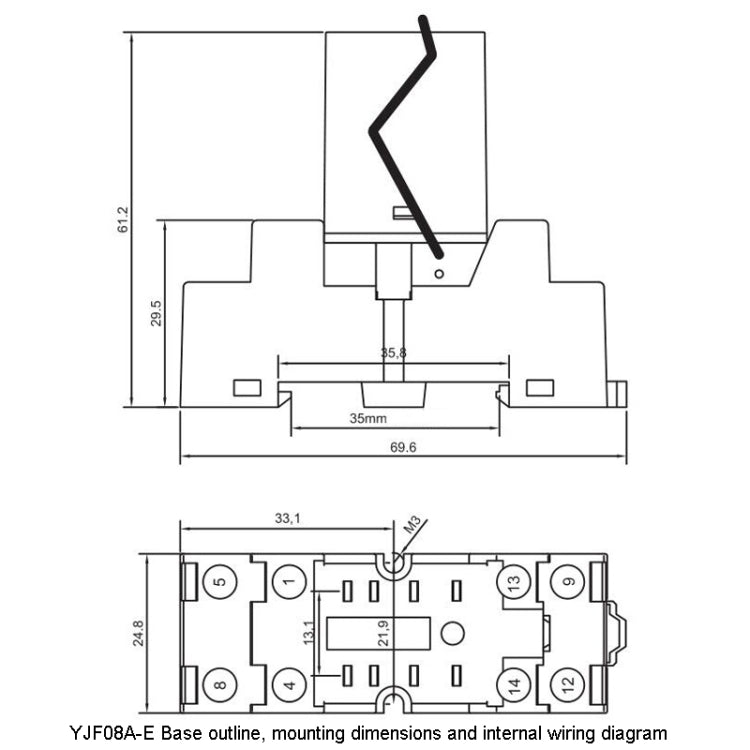

10. Copper core coil, according to different power, the use of appropriate standard full-turn coil, to ensure reliable suction, can be used with the base YJF08A-E together
11. Weight: about 63 g
12. Size: main body about 3.5 x 2.68 x 2.05 cm, pin about 2.6 x 6 mm
Specification:
|
Package Weight
|
| One Package Weight |
0.08kgs / 0.19lb
|
| One Package Size |
8cm * 5cm * 4cm / 3.15inch * 1.97inch * 1.57inch
|
| Carton Weight |
25.10kgs / 55.34lb
|
| Carton Size |
52cm * 42cm * 32cm / 20.47inch * 16.54inch * 12.6inch
|
| Loading Container |
20GP: 381 cartons * 300 pcs = 114300 pcs
40HQ: 885 cartons * 300 pcs = 265500 pcs
|
|
