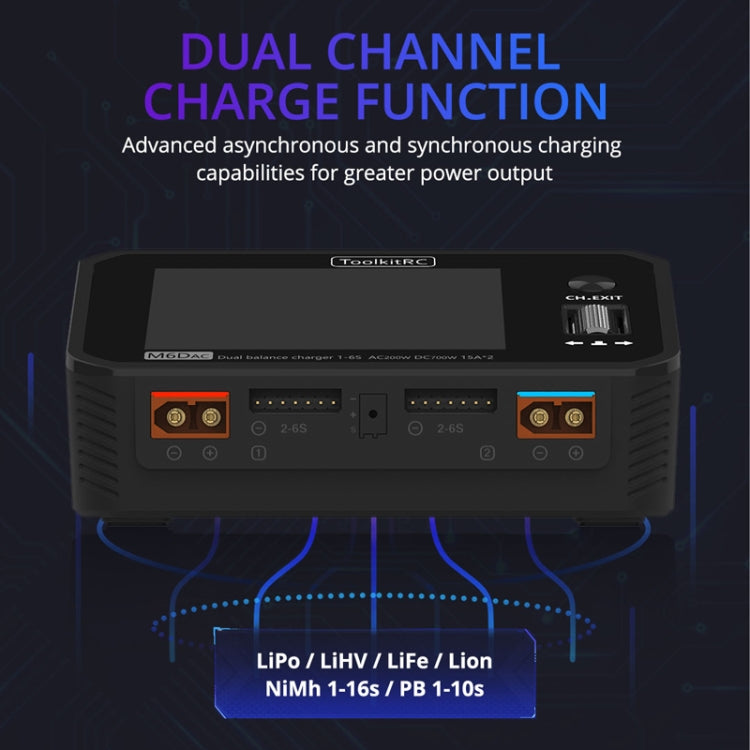

1. Dual-channel output, automatic power distribution in asynchronous mode, higher output power in synchronous mode

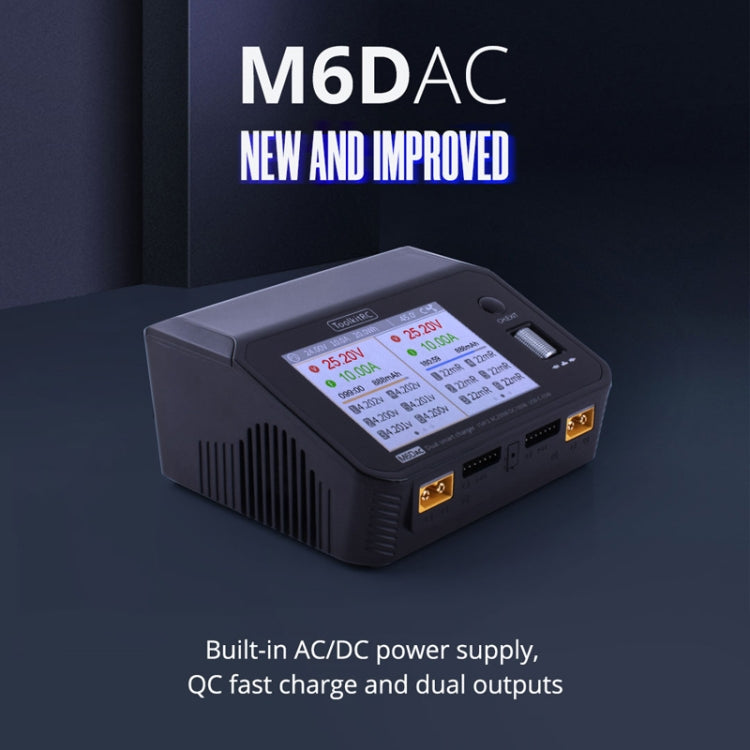

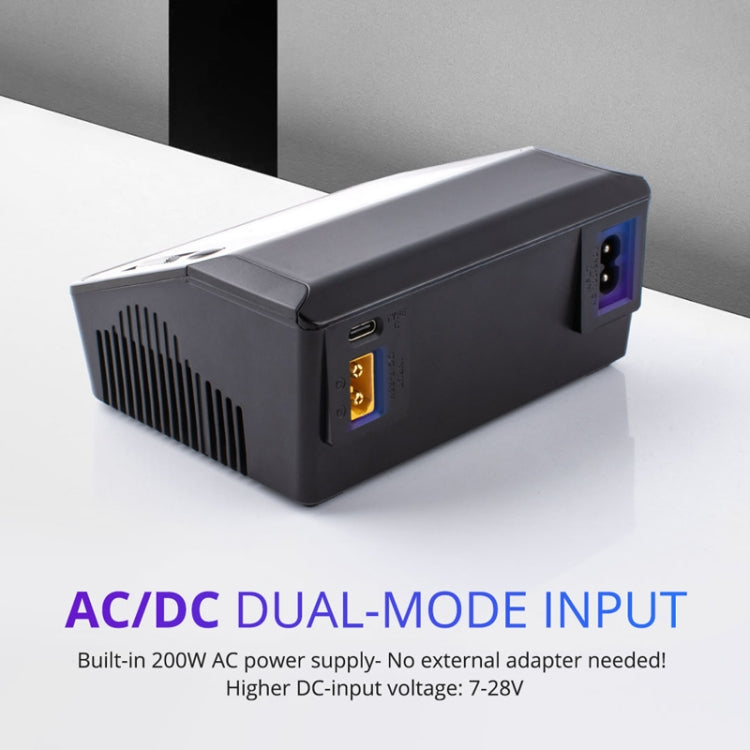

2. AC/DC dual-mode input, built-in 200W AC power supply, more convenient to use; DC input, more power

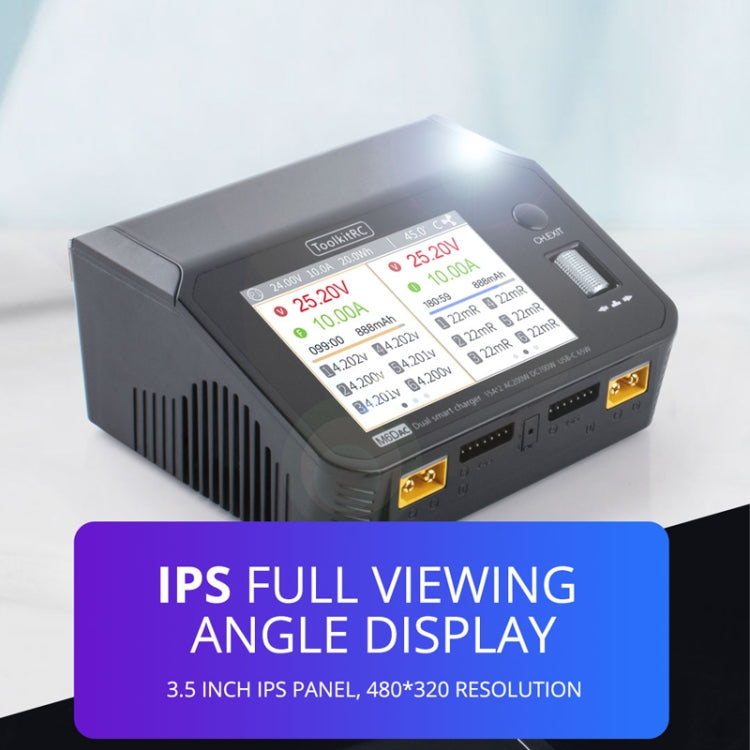

3. IPS full-viewing angle display, data at a glance

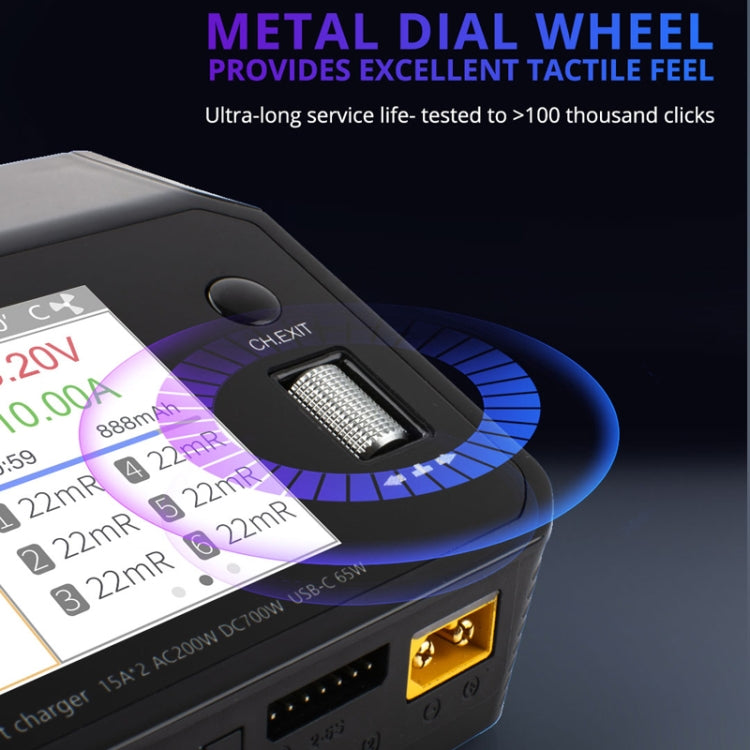

4. Metal toggle wheel, better feel, 100,000 times service life, no fear of the use of the environment
5. Output port status indication, easy to observe the battery charging status
Parameters:
1. Input voltage: DC7-28V MAX 30A; AC100-240V MAX 2.5A
2. Battery type: LiPo LiHV LiFe Lion 1-6S; NiMh 1-16S Pb 1-10S
3. Balance current: 1000mA 2-6S
4. Balance accuracy: less than 0.005V
5. Charging power: asynchronous mode: 0.1-15A 350W x 2; synchronous mode: 0.1-25A 700W
6. Discharge power: recovery mode: 0.1-15A 350W x 2; internal consumption mode: 0.1-3A 15W x 2

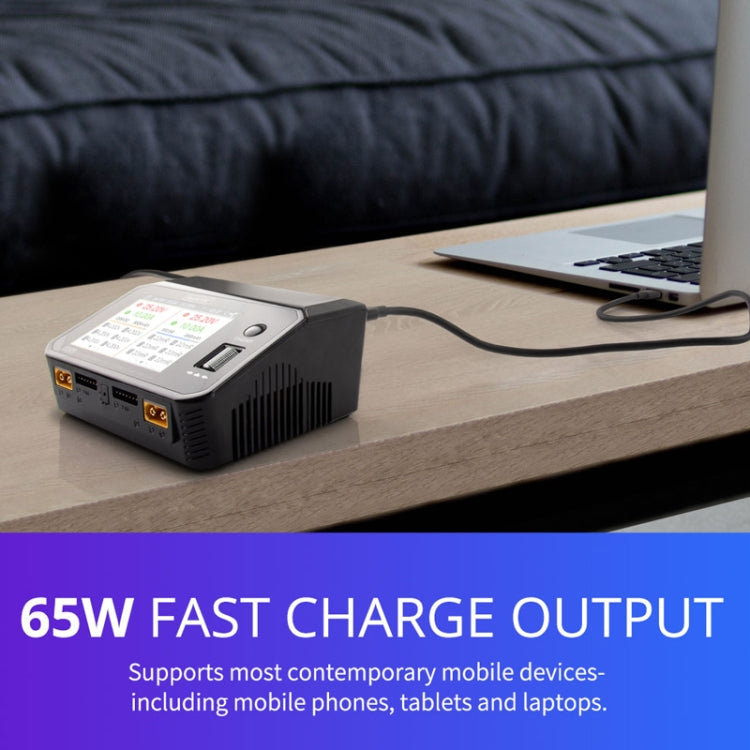

7. USB-C: 65W 20V 3.25A/firmware upgrade
8. Battery voltage: 1.0V-5.0V 1-6S
9. Battery internal resistance: 1-100mR 1-6S
10. Display: LCD IPS 3.5 inch, 480 x 320 resolution
11. Size: 127 x 106 x 57mm
12. Weight: 520g
Specification:
|
Package Weight
|
| One Package Weight |
0.70kgs / 1.55lb
|
| One Package Size |
16cm * 14cm * 7cm / 6.3inch * 5.51inch * 2.76inch
|
| Carton Weight |
23.40kgs / 51.59lb
|
| Carton Size |
55cm * 36cm * 32cm / 21.65inch * 14.17inch * 12.6inch
|
| Loading Container |
20GP: 420 cartons * 32 pcs = 13440 pcs
40HQ: 977 cartons * 32 pcs = 31264 pcs
|
|
