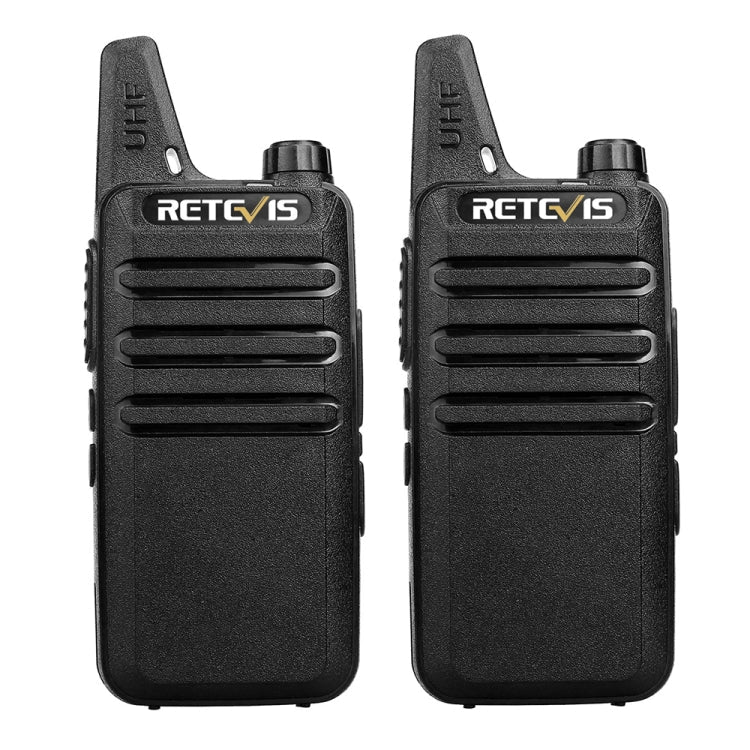

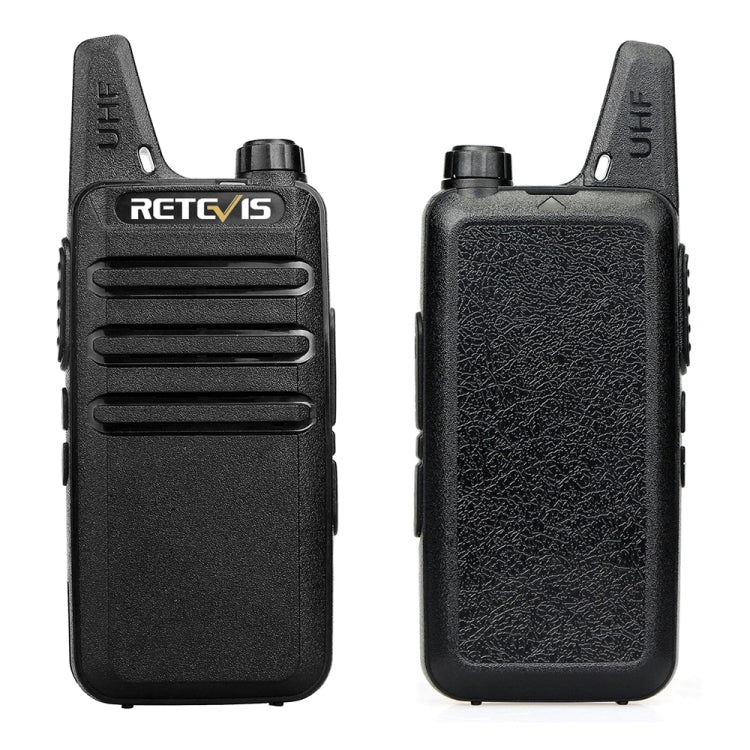

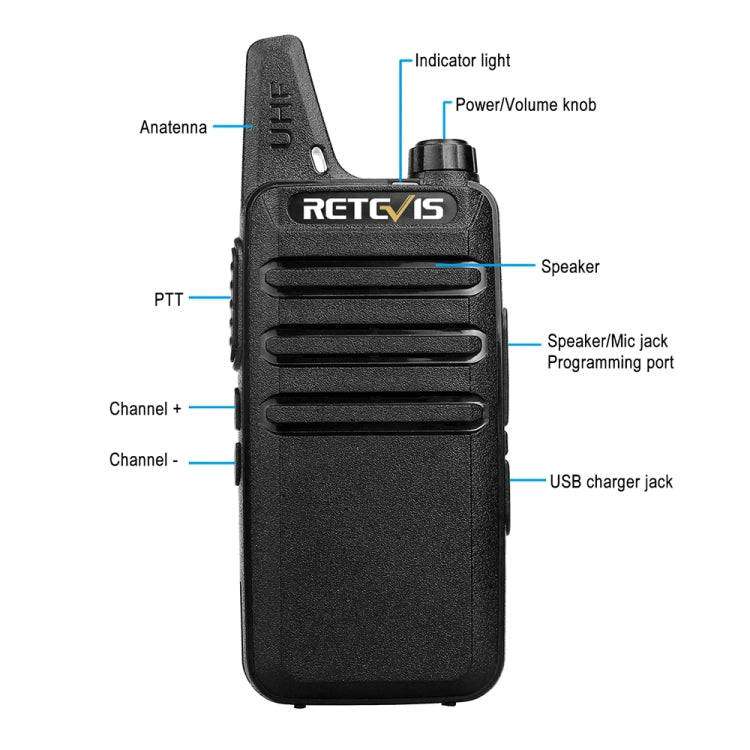

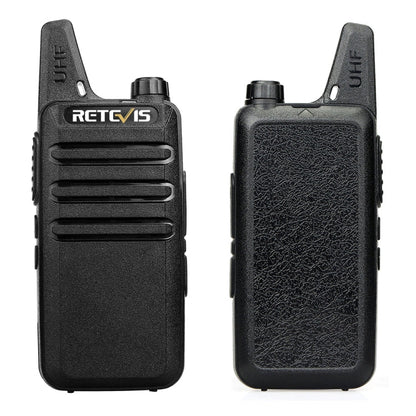

Description:
1. Low-power two-way radio with 2W power.
2. A longer distance can be achieved when using integrated circuits and integrated antennas.

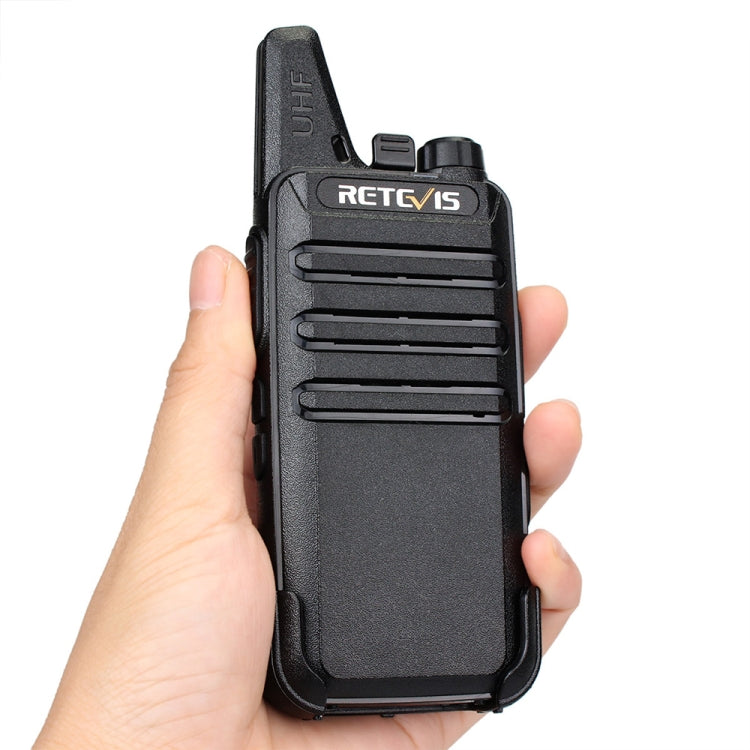

3. Mini size, easy to carry.

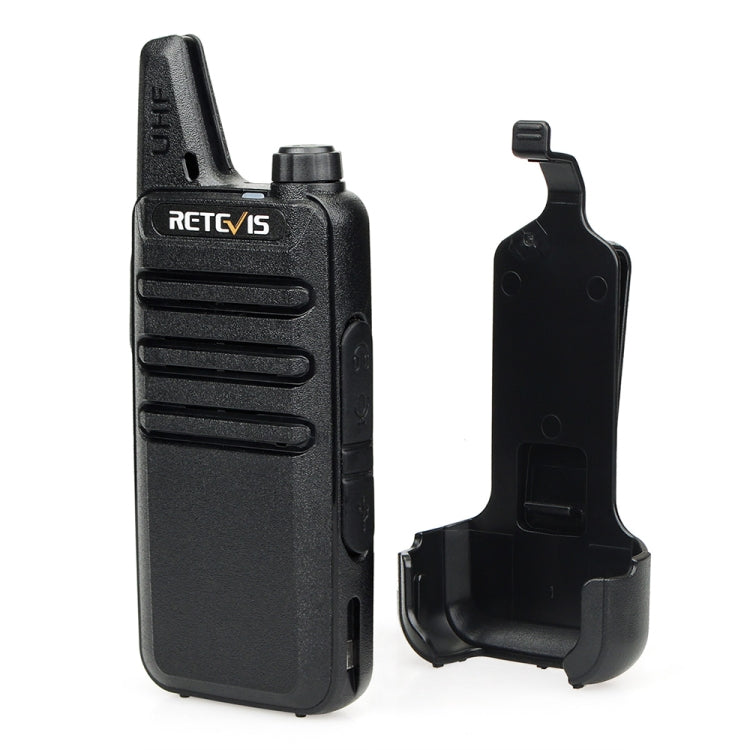

4. Equipped with a belt clip, can be hung around the waist.
5. Note: The actual communication distance will vary depending on the terrain and environment
Functions:
1. CTCSS&DCS encoding/decoding
2. Monitoring function
3. Emergency alarm
4. Scanning
5. Wide/narrow band selection (25 KHZ/12.5KHz)
6. TOT (Timeout Timer)
7. Squelch
8. VOX function
9. High/low power selectable
10. Power saving function
11. English/Chinese voice prompt
12. Low battery prompt
13. PC programming
14. Removable battery
15. Dustproof
Product parameters:
1. Frequency range: UHF:400-480MHz
2. Power: 2W
3. Channel capacity: 16
4. Battery capacity: 1000mAh lithium-ion battery
5. Working voltage: DC 3.7V
6. Microphone/speaker/programming port: 2-pin plug type, suitable for Kenwood
7. Antenna: Integrated antenna
8. Antenna impedance: 50 ohms

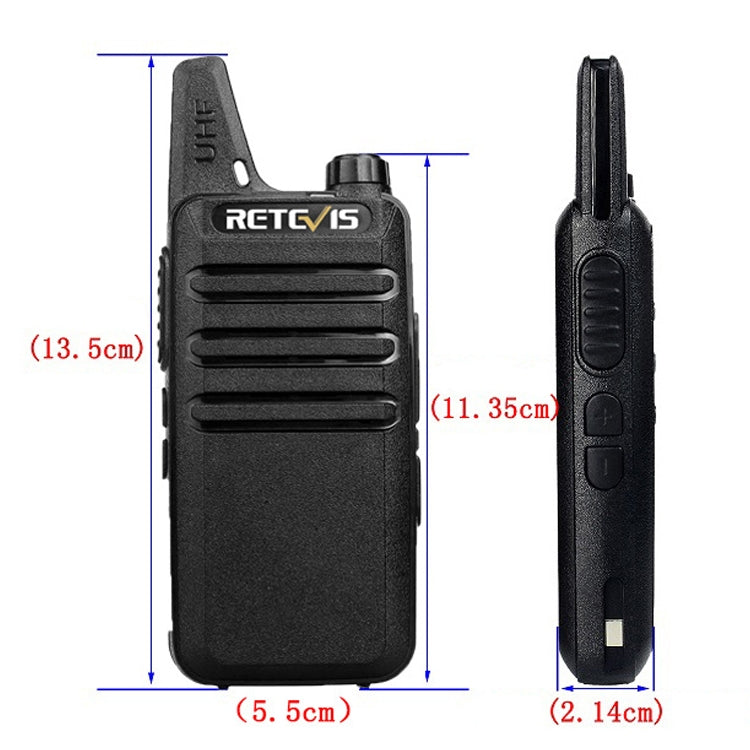

9. Product size: 5.32 x 2.16 x 0.84 inches (13.5 x 5.5 x 2.14 cm)
10. Product weight (including battery and antenna): 113 grams
Transmitter:
1. Output power: 2W/1W
2. Maximum deviation: 5KHz
3. Residual radiation: 60dB
4. Current: 1000mA
5. Audio response: +7 to -12.5dB
Receiver:
1. Sensitivity: 0.16μV (12dB SINAD)
2. Quiet sensitivity: 0.2μV
3. Intermodulation: 50dB
4. Audio power: 300mW
5. Current: 100mA
6. Quiet current: 20mA

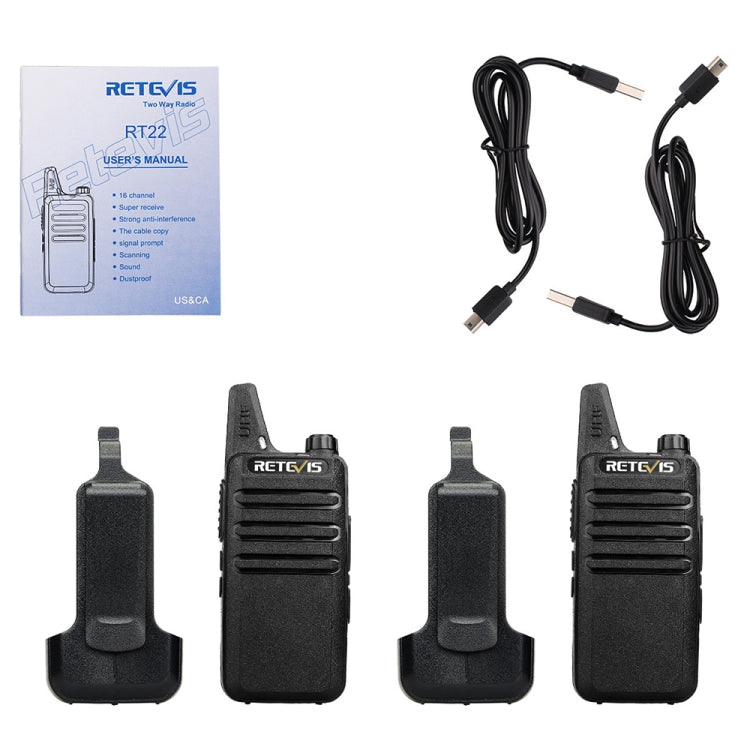

Packing list:
-US frequency: Walkie-talkie x 2, USB cable x 2. Charger x 1, belt clip x 2, manual x 1
-European frequency: walkie-talkie x 2, USB cable x 2, belt clip x 2, manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.44kgs / 0.98lb
|
| One Package Size |
23cm * 18cm * 6cm / 9.06inch * 7.09inch * 2.36inch
|
| Carton Weight |
18.60kgs / 41.01lb
|
| Carton Size |
52cm * 39cm * 48cm / 20.47inch * 15.35inch * 18.9inch
|
| Loading Container |
20GP: 273 cartons * 40 pcs = 10920 pcs
40HQ: 635 cartons * 40 pcs = 25400 pcs
|
|
