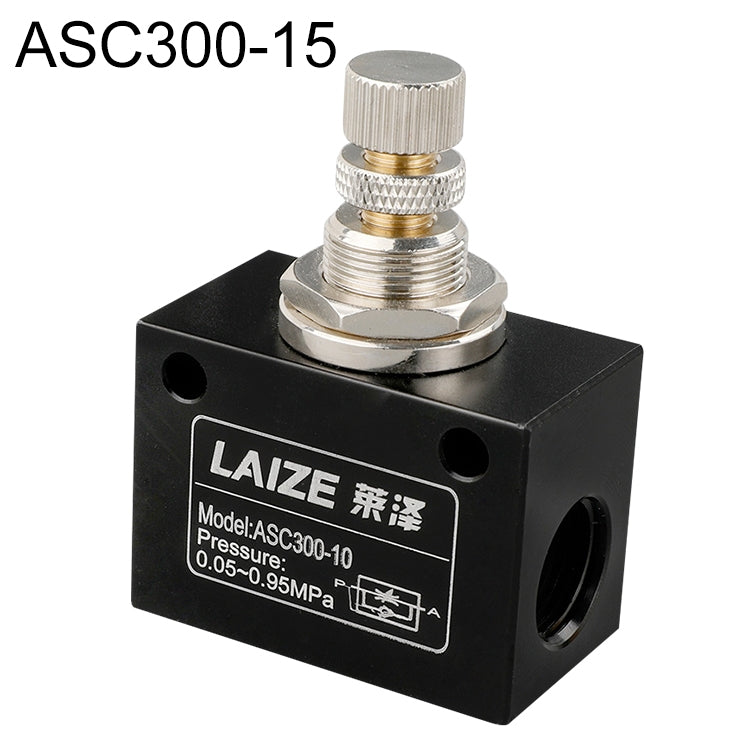

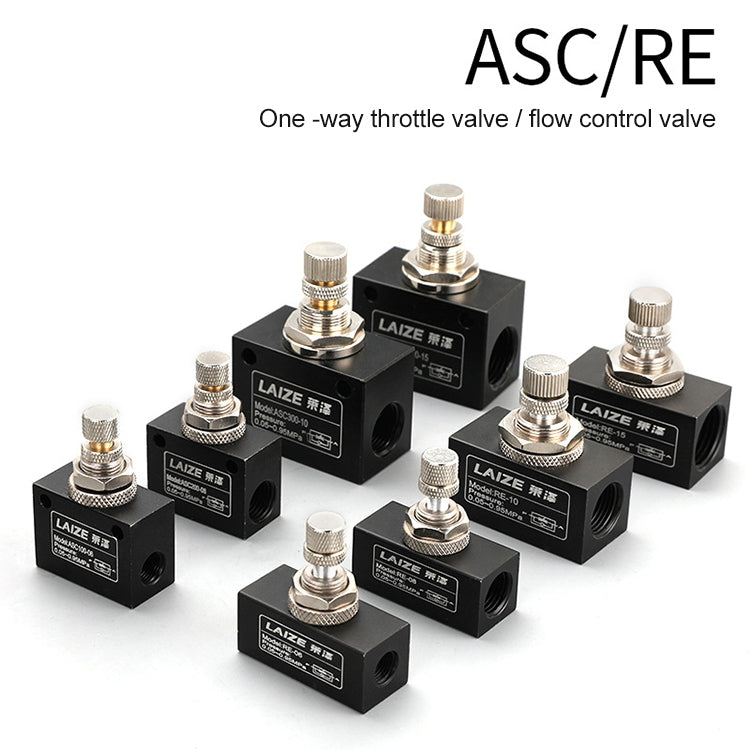

LAIZE Pneumatic Speed Regulating One-way Throttle Valve, Specification:ASC300-15 DN15mm

LAIZE Pneumatic Speed Regulating One-way Throttle Valve, Specification:ASC300-15 DN15mm

£27.90 GBP
£27.90 GBP
할인 품절
세금이 포함된 가격입니다. 배송료는 결제 시 계산됩니다.

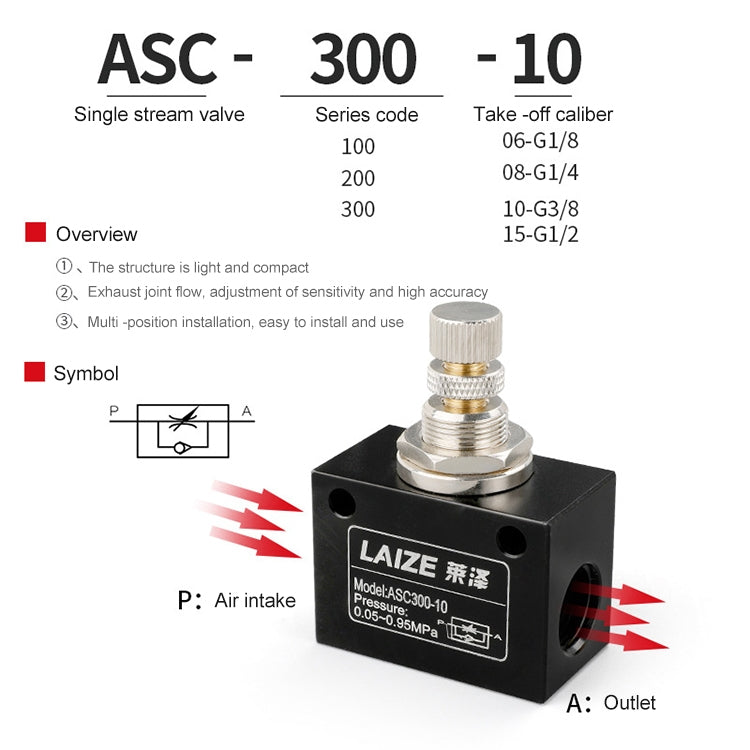

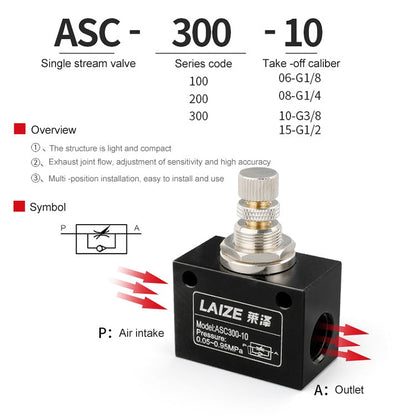

1. The structure is light and compact.

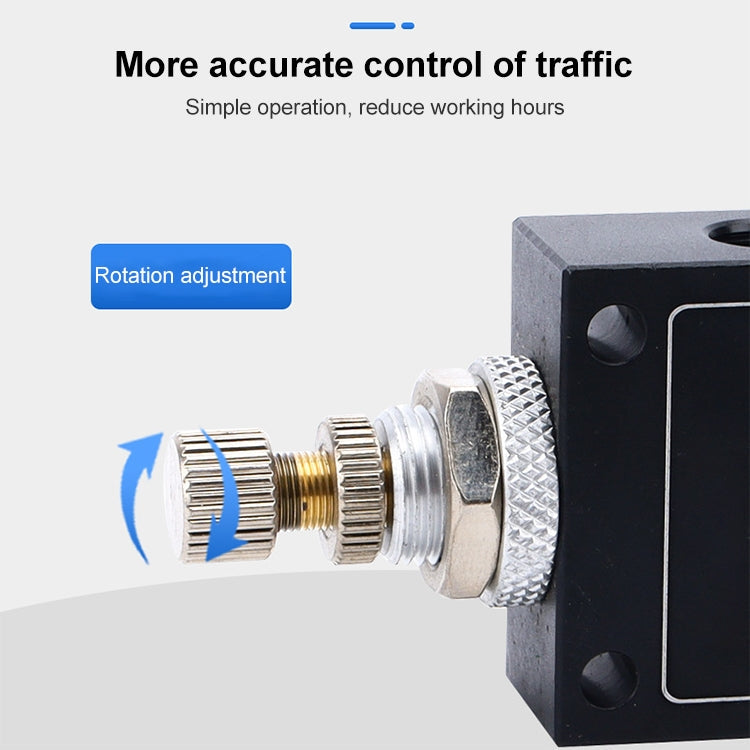

2. Exhaust throttling, sensitive adjustment and high precision.
3. Multi-position installation, easy to install and use.
4. One-way throttle valve parameters:
Diameter:
ASC100-06 DN06mm
ASC200-08 DN08mm
ASC300-10 DN10mm
ASC300-15 DN15mm
Pressure: 1MPa
5. Flow valve parameters:
Diameter:
RE-06 DN06mm
RE-08 DN08mm
RE-10 DN10mm
RE-15 DN15mm
Pressure: 0.8MPa

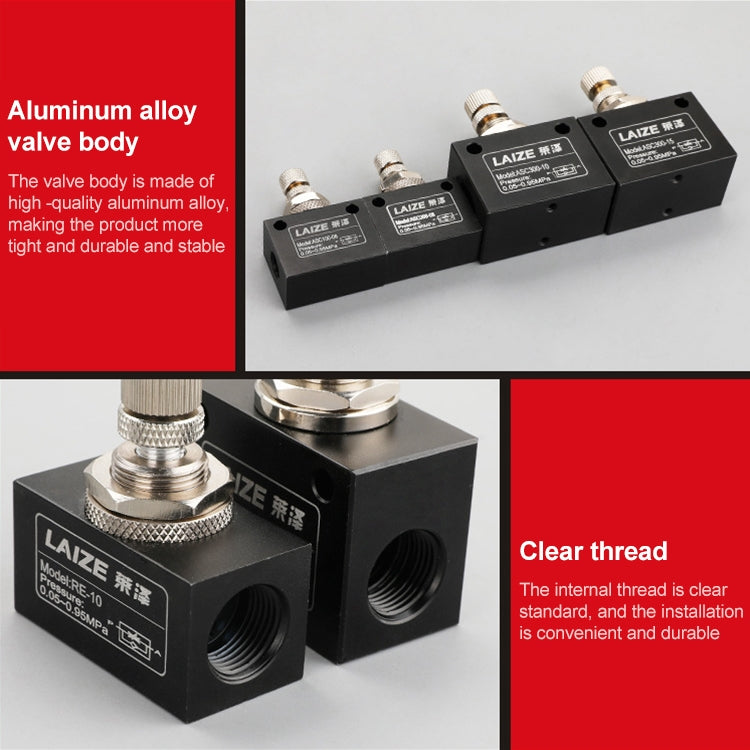

6. Material: aluminum alloy


Specification:
Package Weight
One Package Weight 1.01kgs / 2.22lb
One Package Size 12cm * 10cm * 8cm / 4.72inch * 3.94inch * 3.15inch
Qty per Carton 20
Carton Weight 21.60kgs / 47.62lb
Carton Size 42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch
Loading Container 20GP: 522 cartons * 20 pcs = 10440 pcs
40HQ: 1212 cartons * 20 pcs = 24240 pcs
