1. Power supply: USB direct power supply
2. Power supply voltage: 5-6V
3. Sampling rate: 2.5MS/s
4. Bandwidth: 200KHz
5. Voltage range: X1 40V (Vpp:80V); X10 400V (Vpp:800V)
6. Coupling method: AC/DC
7. PWM output: 3.3V frequency 0-80kHz
8. Display: 2.4 inches 320x240

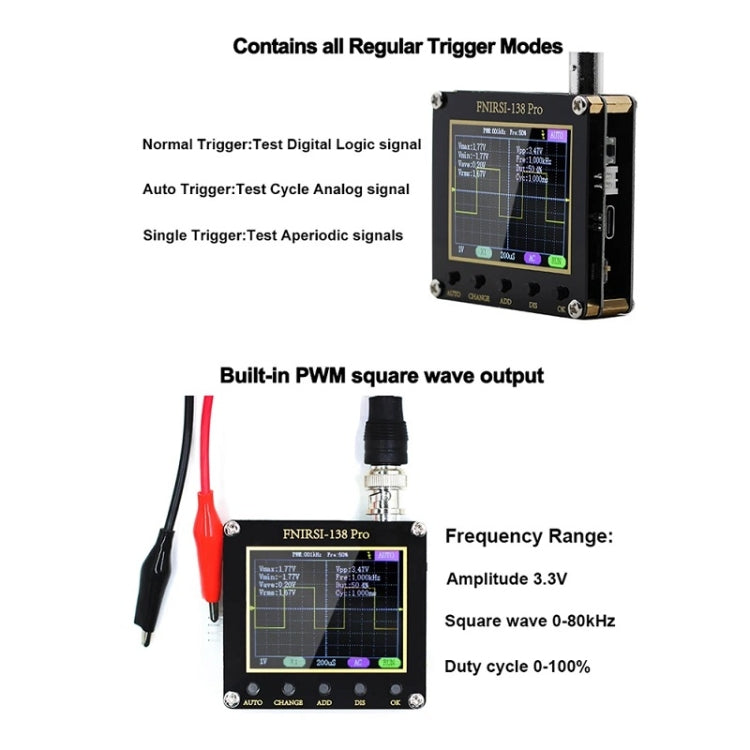

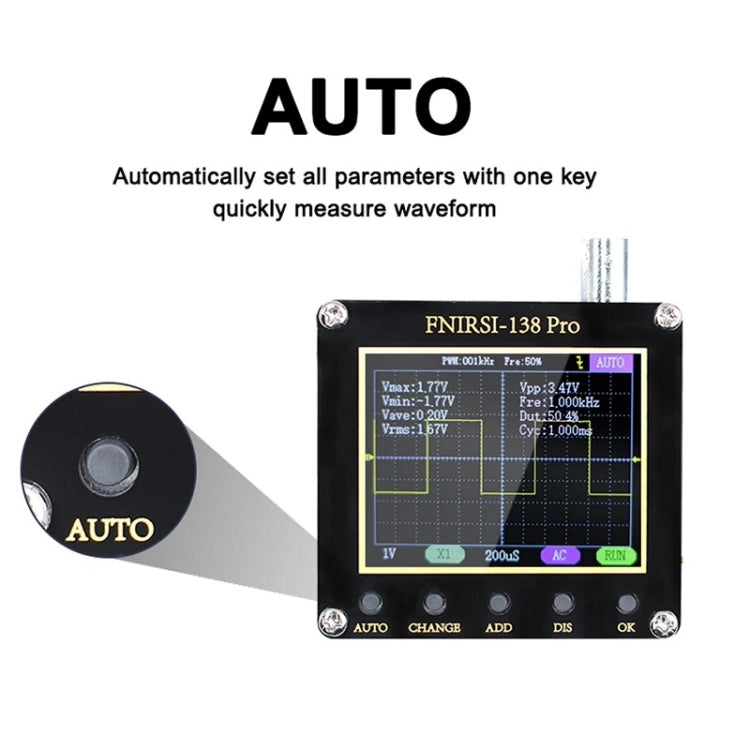

9. Automatic trigger: test cycle simulation signal
10. Single trigger: test sudden non-periodic signals
11. Normal triggering: testing digital logic signals

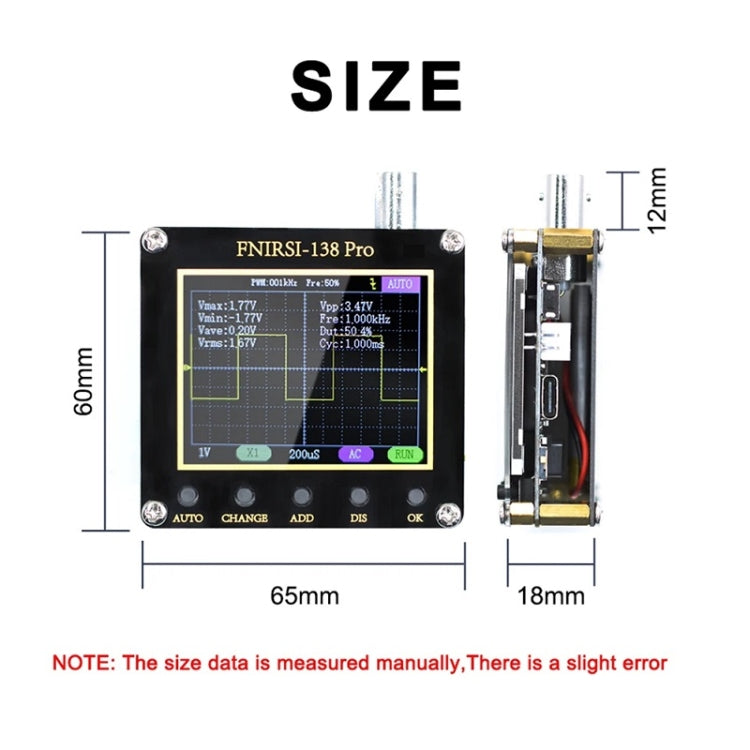

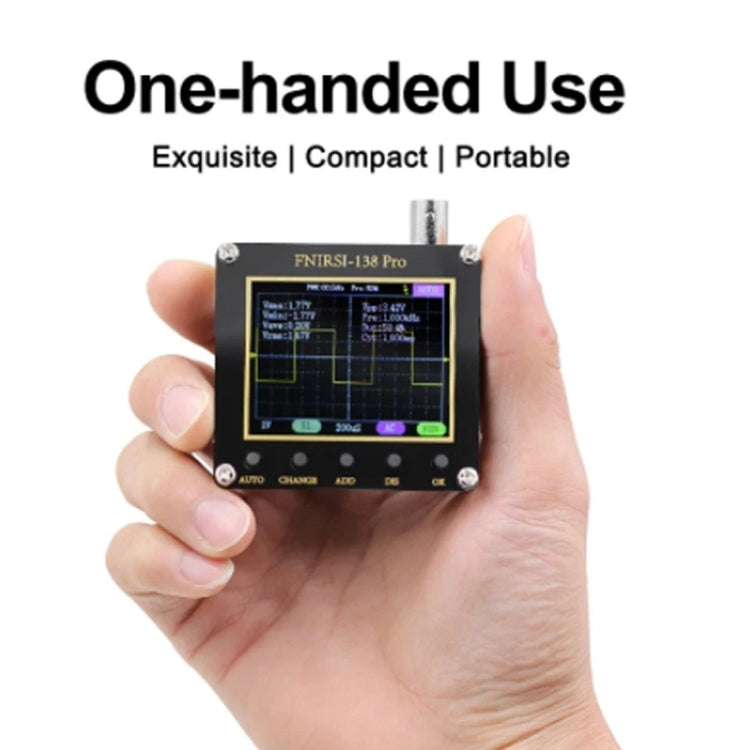

12. Size: 65x60x18mm
13. Weight: 53g (excluding battery)

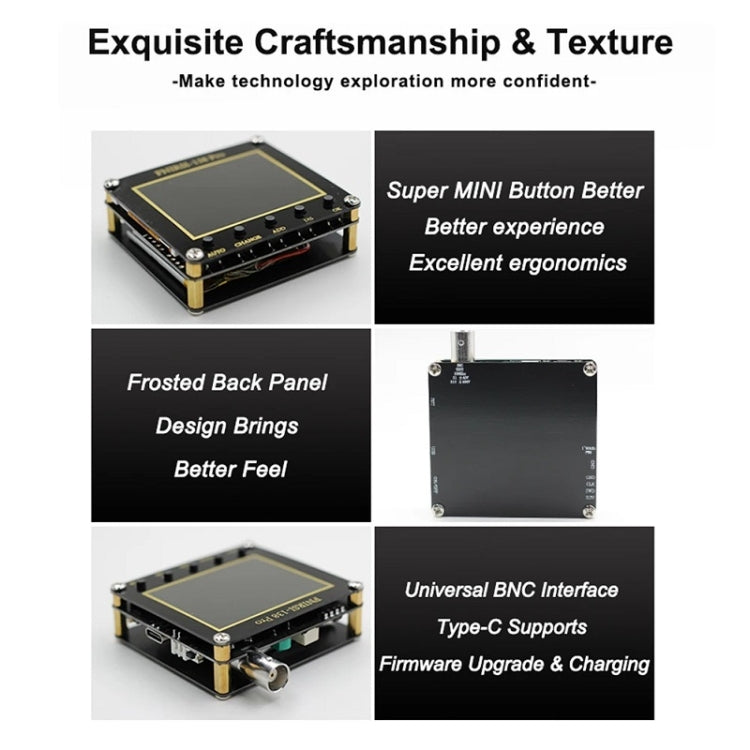

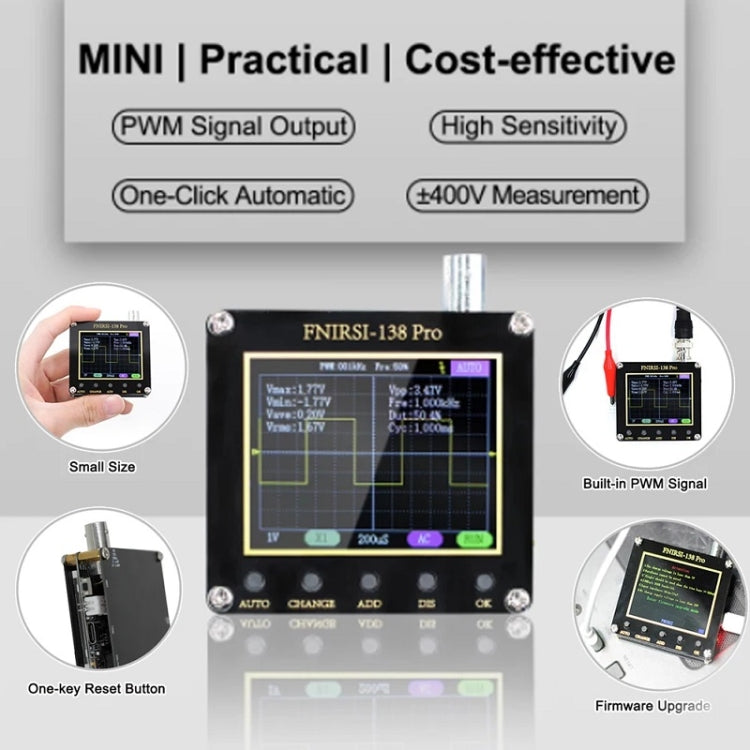

14. Small buttons, comfortable to press and ergonomically designed

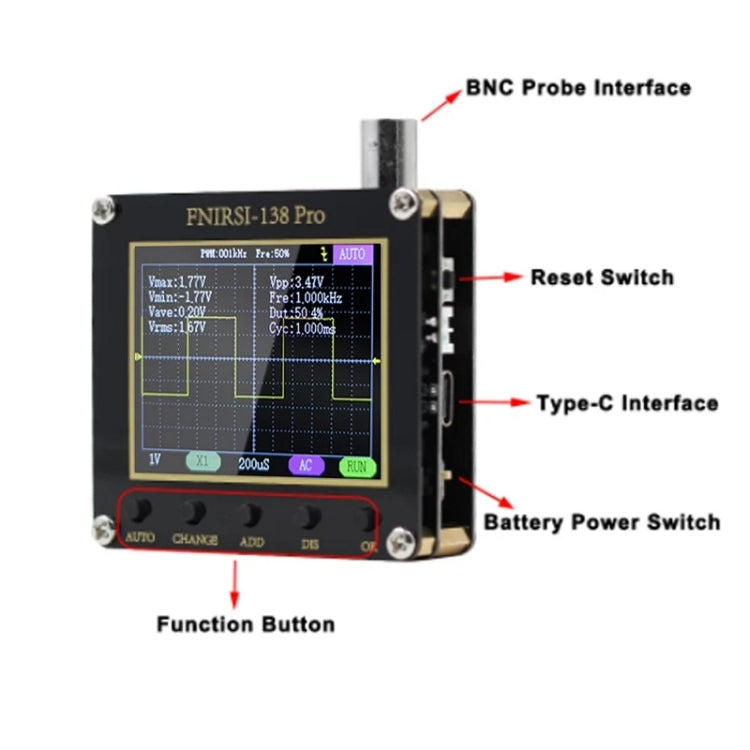

15. Universal BNC interface, Type-C supports data transmission and charging

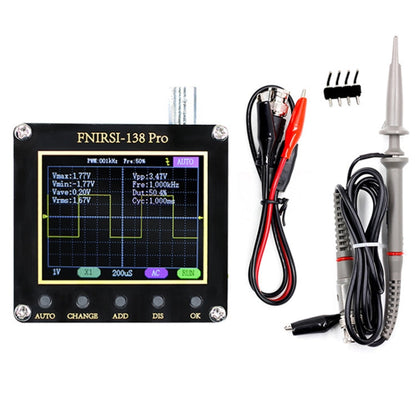

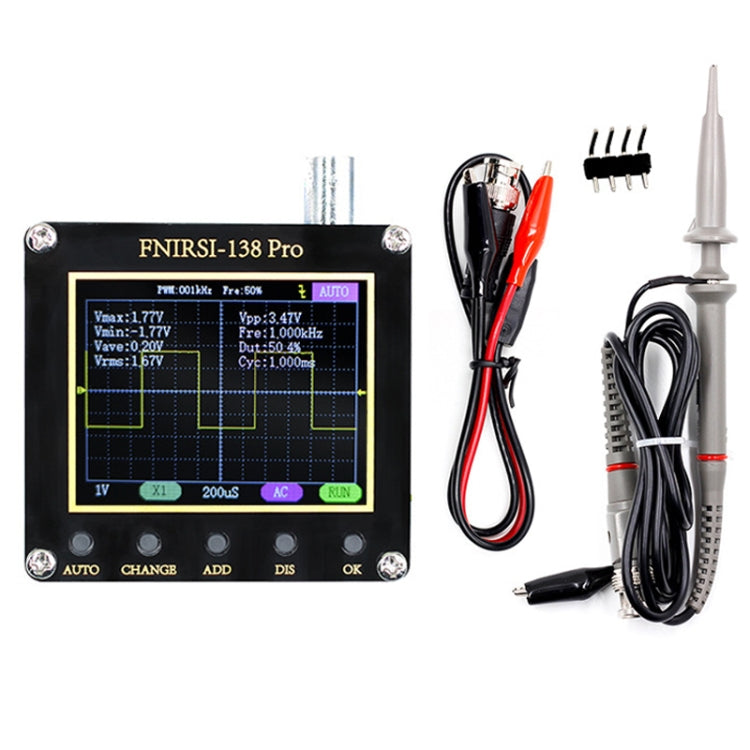

16. Note: The high configuration comes standard with an extra 10x P6100 probe
Specification:
|
Package Weight
|
| One Package Weight |
0.17kgs / 0.36lb
|
| One Package Size |
15cm * 10cm * 4cm / 5.91inch * 3.94inch * 1.57inch
|
| Carton Weight |
12.69kgs / 27.98lb
|
| Carton Size |
47cm * 32cm * 34cm / 18.5inch * 12.6inch * 13.39inch
|
| Loading Container |
20GP: 521 cartons * 72 pcs = 37512 pcs
40HQ: 1210 cartons * 72 pcs = 87120 pcs
|
|
