1. Wide compatibility, supports major truck models that conform to standard protocols (SAE J1939, SAE J1708/J1587, ISO 14230-4, ISO 15764-4 and ISO 9141-2, ISO 27145-4)
2. Support all systems, such as engine, ABS, transmission, brake system, ESP, EPS, fuel system, etc.
3. 2.8 inch LCD color screen, easy to view the display results
4. Fast speed and no lag in response
5. You can get in-depth analysis data about the system and do some repairs by yourself

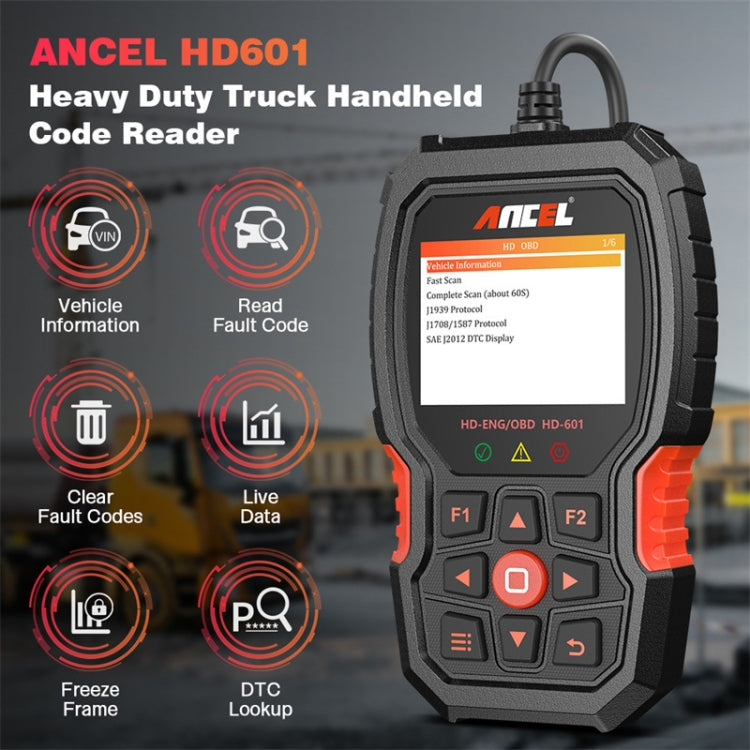

6. Read codes, clear codes, view real-time truck data in text or graphical format, retrieve vehicle information, view freeze frames and find DTCs
7. Built-in DTC library for direct code retrieval
8. Plug and play, simple and convenient
9. Support language: English, Spanish
10. Voltage: 24V
11. CPU: 100MHZ Display 2.8 inch LCD
12. Flash: 8m

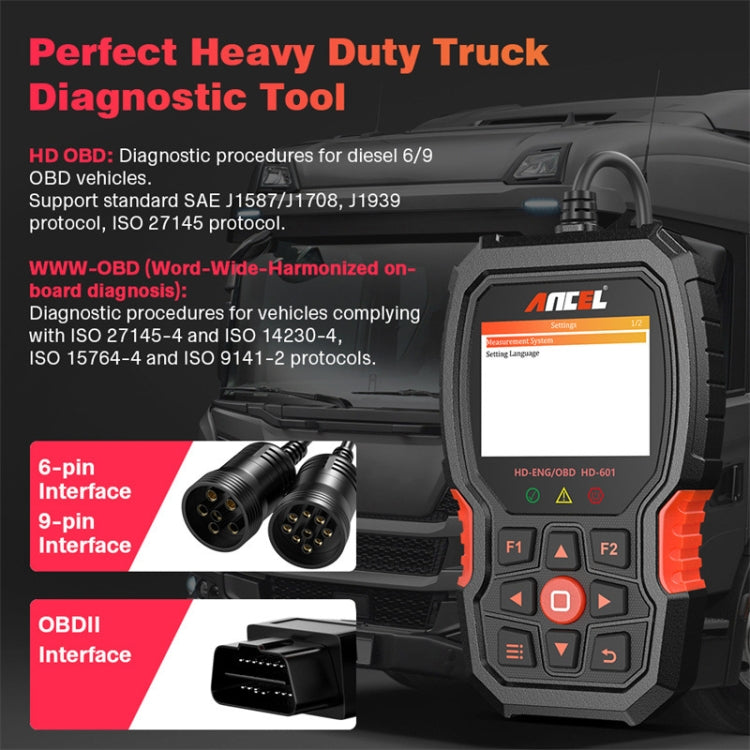

13. Diagnostic interface: main line OBDII and transmission line Diesel-6/9
14. Size: about 16.5 x 9.7 x 3.3cm
Specification:
|
Package Weight
|
| One Package Weight |
0.78kgs / 1.73lb
|
| One Package Size |
20cm * 12cm * 5cm / 7.87inch * 4.72inch * 1.97inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 36 pcs = 6372 pcs
40HQ: 412 cartons * 36 pcs = 14832 pcs
|
|
