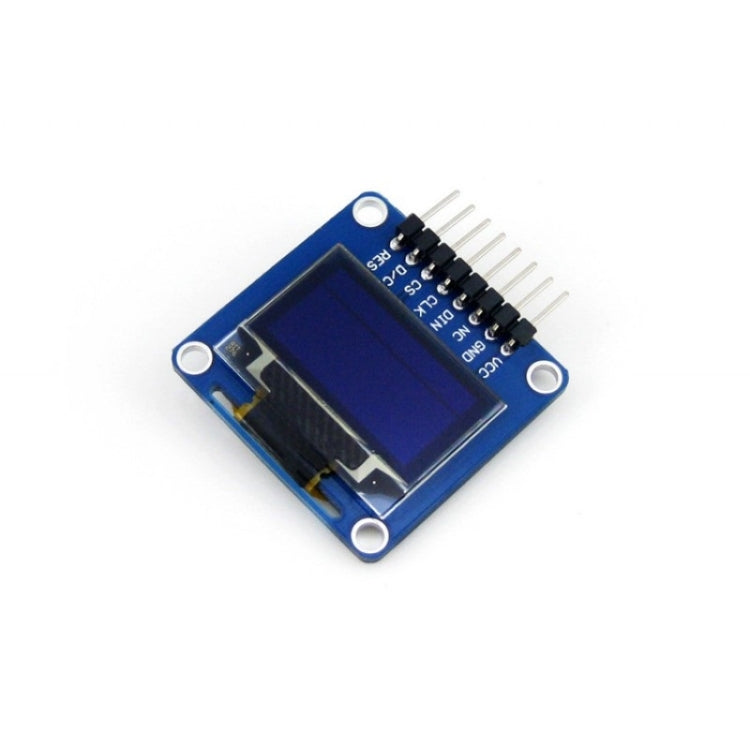

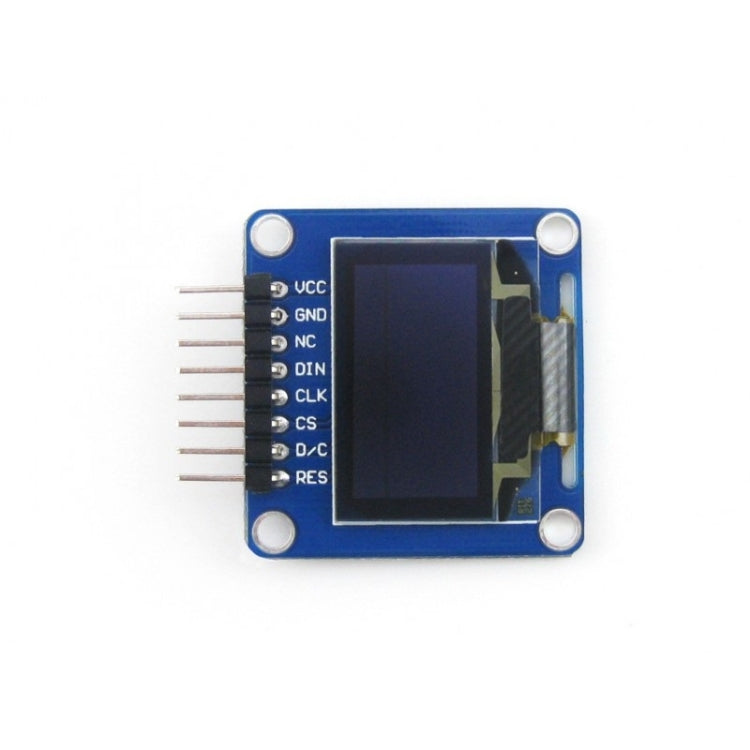

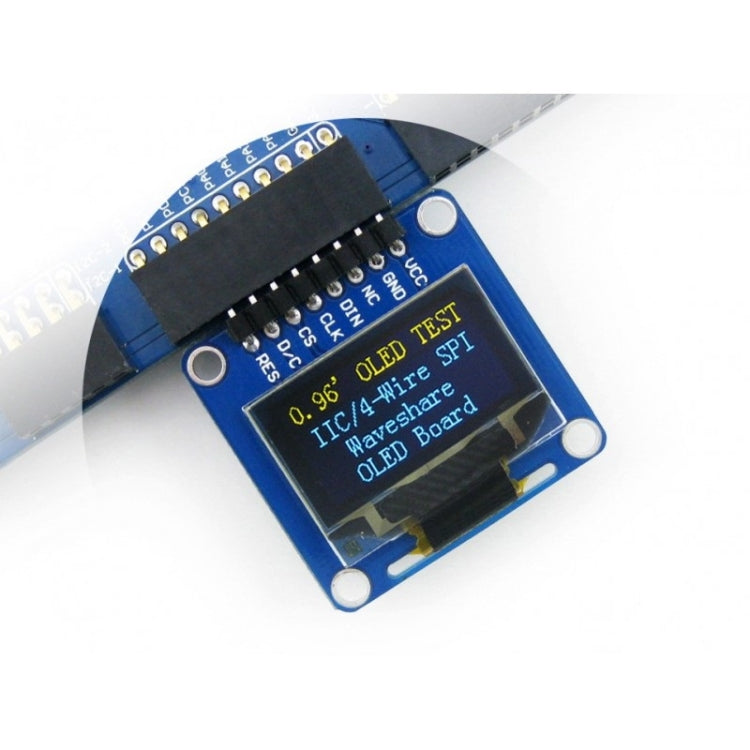

Waveshare 0.96 inch 128*64 OLED (A), SPI/I2C Interfaces, Angled Horizontal Pinheader

Waveshare 0.96 inch 128*64 OLED (A), SPI/I2C Interfaces, Angled Horizontal Pinheader

£18.50 GBP
£18.50 GBP
特價 售罄
已包含稅額。 結帳時計算運費。
1. Driver chip: SSD1306

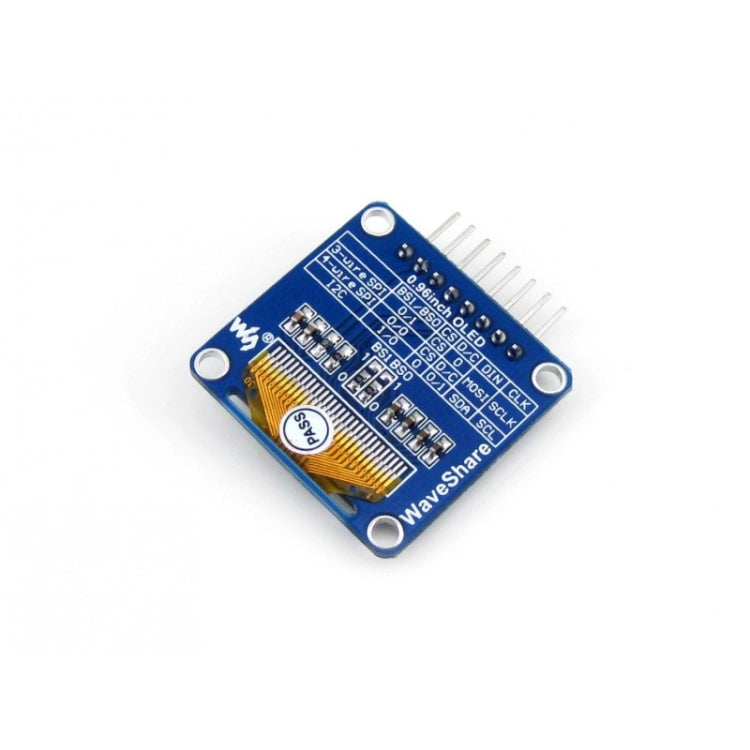

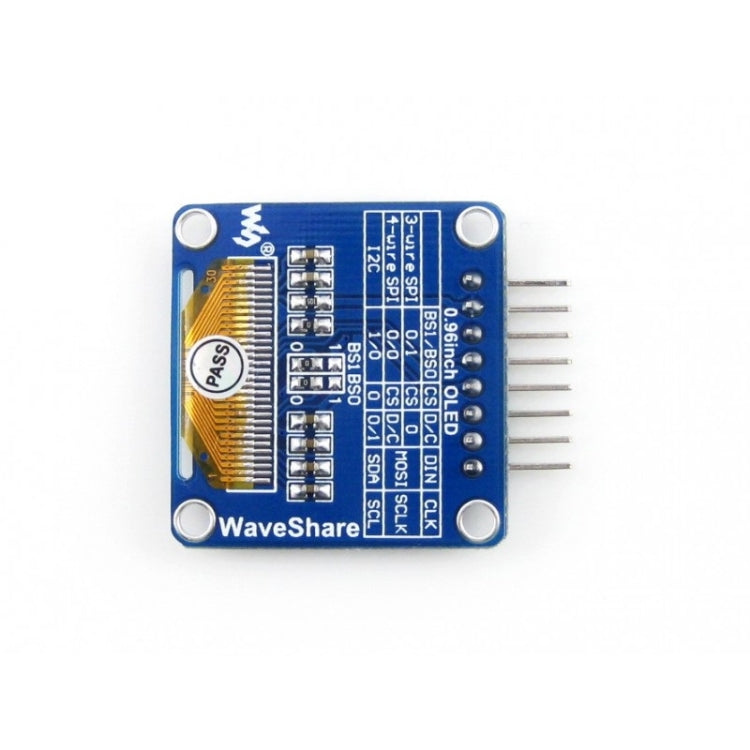

2. Interface: 3-wire SPI, 4-wire SPI, I2C
3. Resolution: 128*64
4. Display size: 0.96 inch
5. Colors: 1/4 yellow section, 3/4 blue section
6. Visible angle: >160 degree
7. Operating temperature: -30~70 degree C
8. Storage temperature: -30~80 degree C
9. Operating voltage: 3.3V / 5V


Specification:
Package Weight
One Package Weight 0.02kgs / 0.04lb
One Package Size 6cm * 4cm * 2cm / 2.36inch * 1.57inch * 0.79inch
Qty per Carton 2000
Carton Weight 15.00kgs / 33.07lb
Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
Loading Container 20GP: 277 cartons * 2000 pcs = 554000 pcs
40HQ: 644 cartons * 2000 pcs = 1288000 pcs
